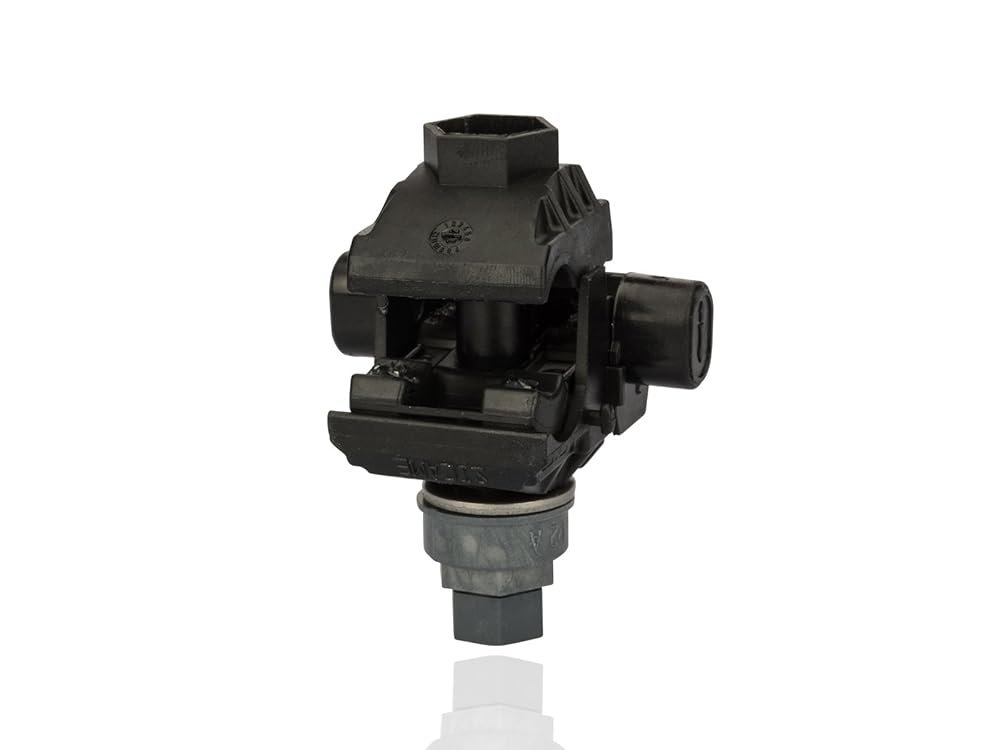

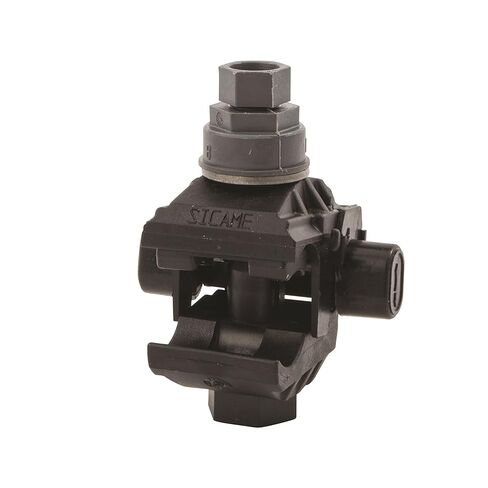

This NSi Industries IPCS2001 Easy-Tap insulation-piercing connector is suitable for tapping electrical lines in copper-to-copper, copper-to-aluminum, and aluminum-to-aluminum solid or stranded wire applications. It can be used on main lines from American Wire Gauge (AWG) 2/0 to #4 with tap lines from #10 to #14 AWG. It is fully insulated and can be used on energized conductors as long as the tap line is not under load. Double shear-head bolts ensure that the proper amount of torque is applied during installation. This connector is not recommended for use with extra-flexible cables, is not approved for submersible applications, and cannot be used with bare wire or as a splice. It is rated for 600V and 90 degrees C and meets American National Standards Institute (ANSI) C119.4 requirements and is Underwriters Laboratories (UL) 486B Listed. This insulation-piercing connector is suitable for a wide range of electrical line tapping applications with appropriately sized conductors.
SpecificationsMain line size range2/0 to #4 AWGTap line size range#10 to #14 AWGCopper current rating55 ampAluminum current rating40 ampVoltage rating600VTemperature rating90 degrees CDimensions*3 x 1.8 x 2.2 inches (H x W x L)Standards metANSI C119.4, UL 486B Listed
* H is height, the vertical distance from bottom to top; W is width, the horizontal distance from left to right; L is length, the horizontal distance from front to back.
NSi Industries manufactures electrical components and sensors, lighting products, and energy management products. The company, founded in 1975, is headquartered in Huntersville, NC.
