Hiorucet 80610 Thermodisc Low Temp Snap Switch for Breckwell Pellet Stove Parts P24, P23, P22, P1000 Big E, P2000, P2700, P26, USSC 5040, 5520, Ashley APC4000, 110°F C-E-090-22C Low Limit Safety Snap.

KWD 6
Brand
Hiorucet
Weight
55 g
– 1 +

Special Features

  • ► Replaces Part Number: 80610 Thermodisc, Breckwell C-E-090-22C Thermodisc. This Breckwell Thermodisc Low Temp Snap Switch 110F 80610 Suitable for Breckwell Pellet Stove Parts, USSC Pellet Stove Parts and Ashley Pellet Stove Parts.
  • ► Fit For Breckwell Pellet Stove Parts - Breckwell P24, P22, P1000 Big E, P20, P23, P2000, P2700, P26, P28, P32, P4000 Classic Cast, SP6000 Pre 2013. ► USSC Pellet Stove Parts - US Stove 5520, 5040 Pellet Heater. ► Ashley Pellet Stove Parts - APC4000.
  • ► Parameter - The thermodisc 80610 Voltage: 250, Amps: 16. Product Note: Some of the older Breckwell models require an adapter plate to mount this snap disc, part C-S-957. The new disc here will appear to be smaller than the old one, but it is the correct part. If your measurement between the mounting holes is greater then approx 1" then you need the adapter plate.
  • ► Function - This is the Proof of Fire Switch, 110 Degree Fahrenheit Ceramic Flush Mount Low Limit Switch. This switch will lock in the auger feed when temps exceed 110 degrees Fahrenheit.
  • ► Included With Purchase - Included a breckwell c-e-090-22c thermodisc. The breckwell 80610 is a replacement low limit thermodisc made to fit a variety of USSC / Breckwell / Ashley brand pellet stoves, including breckwell pellet stove parts p24, breckwell p22, breckwell p23 and others. Comes with a 365 day return and exchange.

Description

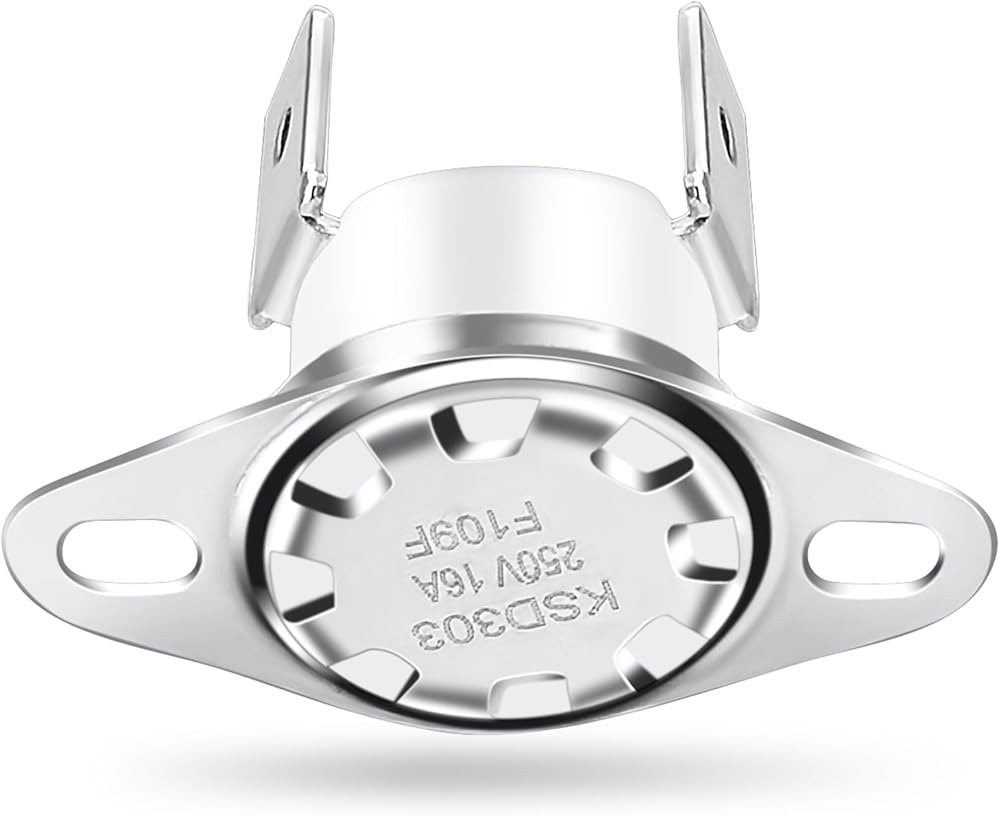

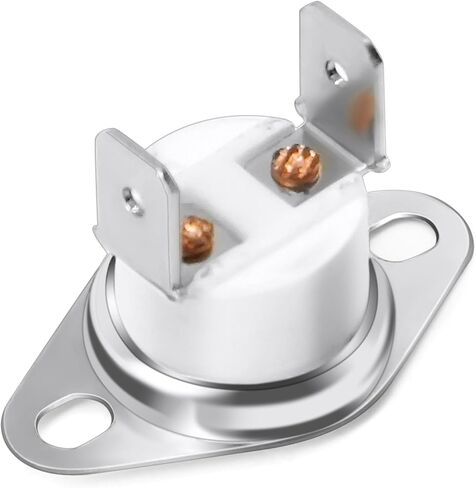

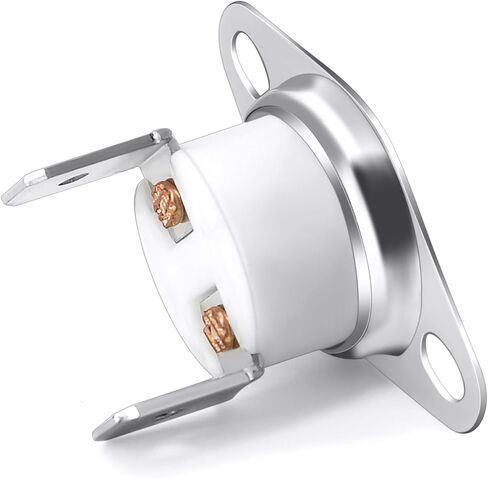

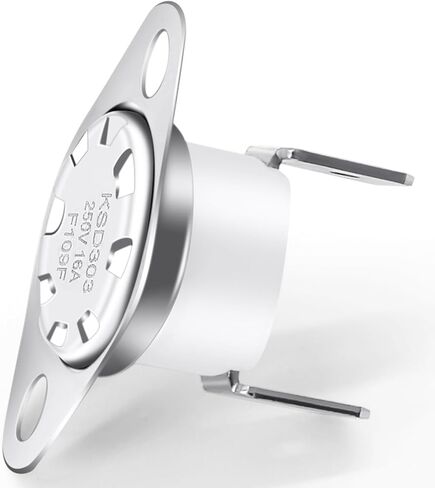

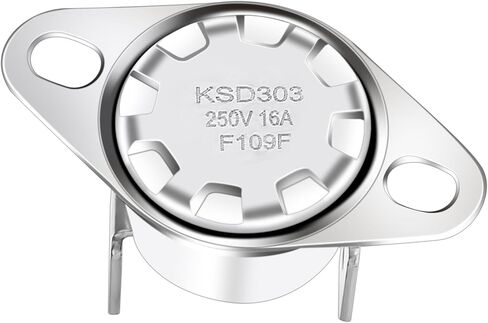

Hiorucet 80610 Thermodisc Low Temp Snap Switch

Voltage: 250
Amps: 16

► Replaces Part Number: 80610 Thermodisc, Breckwell C-E-090-22C Thermodisc.
► For Breckwell Pellet Stove Parts - Breckwell P24, P22, P1000 Big E, P20, P23, P2000, P2700, P26, P28, P32, P4000 Classic Cast, SP6000 Pre 2013.
► USSC Pellet Stove Parts - US Stove 5520, 5040 Pellet Heater.
► Ashley Pellet Stove Parts - APC4000.

► Product Note: Some of the older Breckwell models require an adapter plate to mount this snap disc, part C-S-957. The new disc here will appear to be smaller than the old one, but it is the correct part. If your measurement between the mounting holes is greater then approx 1" then you need the adapter plate.
