100pcs Pogo Pin 4 Claws Plum Spring Test Probe Pogo Pin Pogo Pin Head Type 2.36mm/0.1in Tube Diameter 34mm/1.3in Length Spring Testing Pins

KWD 7
Brand
Walfront
Weight
101 g
– 1 +

Special Features

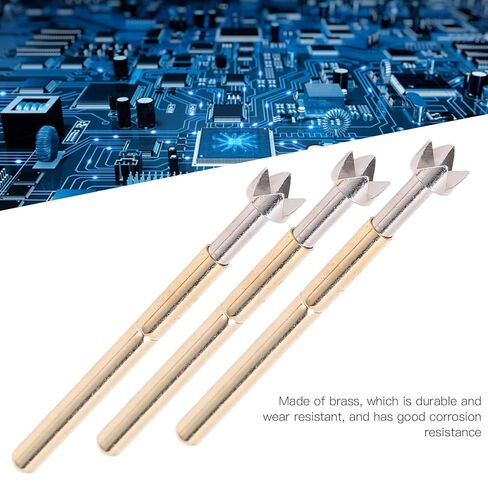

  • Brass Material: The pogo pin is made of brass, which is and wear resistant, and has good
  • Scope of Application: Applicable to multiple types of equipment testing, PCB parameter testing, burn in testing, data writing, etc
  • Size Situation: The diameter of the needle tube is 2.36mm, the diameter of the needle shaft is 2.0mm, the total length of the needle is 34mm
  • Good Conductivity: The pogo pin has a good appearance and strong electrical introduction, so can be used with confidence
  • Simple to Use: After inserting the probe into the needle cover, solder the needle cover to the test equipment

Description

Specification:
Item Type: Pogo Pin
Material: Brass
Model: P156-Q
Uses: Widely Used in Electronic Equipment, Industrial Equipment, Electronic Equipment, Inverters, Welding Machinery, Charging Generators, Ships, Rvs, Trucks, Automobiles, Separation and Distribution of Solar Cells, Hardware, Electronics, Electrical Appliances, Computers, Power Supply Stability Compressors, Game Consoles, Tape Recorders, Communication Products, Etc.
Needle Tube Diameter: Approx. 2.36mm/0.1in
Needle Shaft Diameter: Approx. 2.0mm/0.1in
Total Needle Length: Approx. 34mm/1.3in
Needle Sleeve Drilling Size: Approx. 2.75mm/0.1in
Minimum Test Distance: Approx. 3.96mm/0.2in

How to Use:
Afterinsertingtheprobeintotheneedlecover,soldertheneedlecovertothetestequipment.

Package List:
100 x Pogo Pin
