Features:
1.The gearbox reduction motor with speed control is a specific type of reduction mini gear motors that is designed to produce high torque
2.The DC high torque motors are primarily used to reduce speed in a series of gears, worm gear box reduction motor in turn creates more torque
3. Low voltage mini DC gear motor is widely used for craft models, such as RC cars, DIY motor toys, etc
4. There are five reduction gear motors of different speed and you can choose the one you need
5. High torque motor kit can be found in many different applications, and DC 12V gear motor are probably used in many devices in your home
Specifications:
Voltage: DC 12V
Speed: 15RPM, 30RPM, 50RPM, 100RPM, 200RPM(Optional)

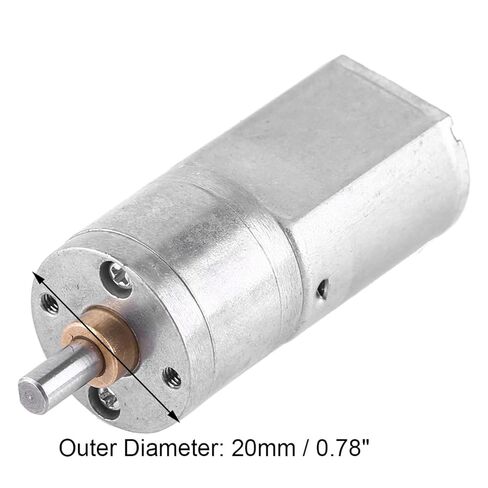

Outer Diameter: 20mm / 0.78"
No Load
Speed(RPM):15, 30, 50, 100, 200
Current(mA):25, 40, /, 22, 65
Stalling
Torque(KG.CM):4.9, 8.1, /, 6.7,6.1
Current(A):3.3, 0.68, /, 0.61,0.65
Reduction Ratio:671, 382, /, 100, 41.5
Gear Box Length(mm):20.5, 20.5, /, 18.5, 17
Package Includes:
1 x Gear Motor
