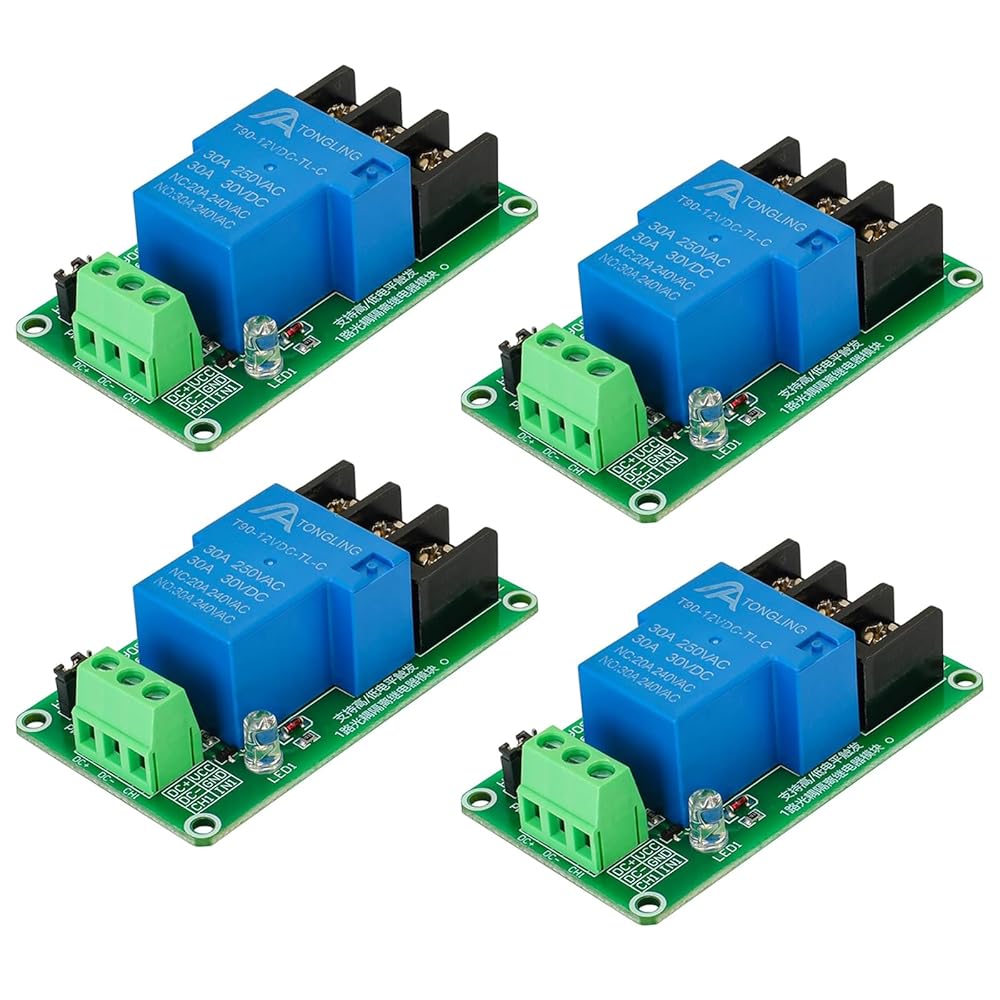

4Pcs DC 12V 1 Channel Relay Module 30A High Low Level Trigger with Optocoupler Isolation Load Relay Board for Arduino Raspberry Pi

KWD 6.500
– 1 +

Special Features

  • High Reliability: Utilizes genuine high-quality 30A relays, ensuring stable and reliable performance for various industrial control scenarios such as PLC automation equipment control and industrial system control.
  • Versatile Flexibility: Supports maximum loads of AC 250V/30A and DC 30V/30A, with a trigger current of 5mA, meeting the requirements of diverse circuit applications. Ideal for electronic enthusiasts for development experiments and circuit modifications.
  • Ease of Operation: Designed for user-friendly operation, with jumper settings for high or low-level triggering, ensuring simplicity in setup. All interfaces can be directly wired through terminal blocks, facilitating quick assembly and debugging.
  • Safety and Reliability: Employs surface-mount optocoupler isolation technology with strong driving capability and stable performance, effectively protecting the safe operation of control devices and circuits, suitable for a wide range of control systems.
  • Wide Applications: Suitable for PLC automation equipment control, industrial system control, IoT control, and more, meeting the control needs of different fields. An ideal choice for both professional users and electronic enthusiasts.

Description

Electrical parameters:
Supply voltage: DC12V;
Quiescent current: 5mA;
Maximum working current: 190mA;
Trigger mode: High / Low Level Trigger;
Load voltage: DC 30V / AC 250V;
Load current: 30A;
Module life: 10 million times;
Switch the maximum frequency: ≤ 5KHz;
Product weight: 46g;
Size:72x40x24mm (LxWxH);
Mounting hole size:44.5x27.5(LxW);

Trigger voltage range:
High-level trigger:
DC 6-12V relay on;
DC 0-5.5V relay off;
----
Low-level trigger:
DC 0-5V relay on;
DC 6-12V relay off;

Pacakage Included:
4pcs 1-Channel Relay Module
