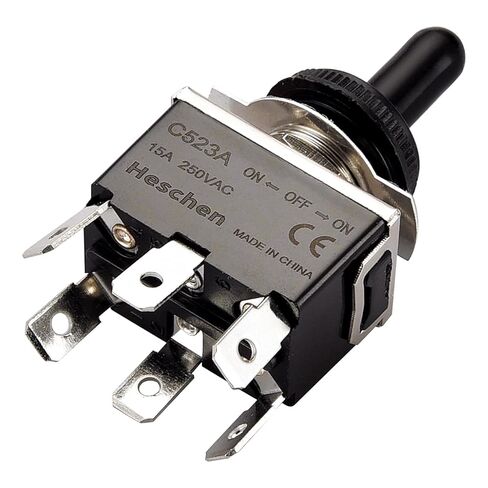

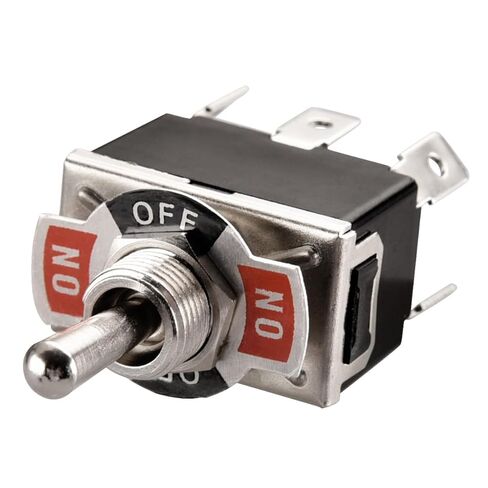

Metal Toggle Switch, C523A, DPDT, Maintained, ON/Off/ON 3 Position, 15A 250VAC, 6 Tab Terminal, CE, with Waterproof Cap

KWD 3
– 1 +

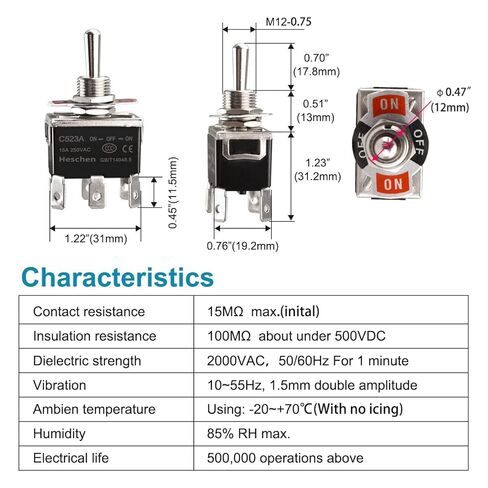

Special Features

  • Rating: 250VAC, 15Amp
  • Type: DPDT ON/OFF/ON Maintained (Latching)
  • Mounting Hole Size: 12mm
  • 6 Tab Terminals(1/4" Width)
  • Body Size: 33mm x 20mm

Description

Contact resistance: 15 Mohm
Insulation resistance: 100 Mohm under 500 VDC
Dielectric strength: 2000 VAC, 50-60 Hz for 1 minute.
Vibration: 10-55Hz, 1.5mm double amplitude
Ambien temperature: -10 to 80 °C.
Mechanical life: 500,000.
Electrical life: 100,000.
CE approved.
