Paraments

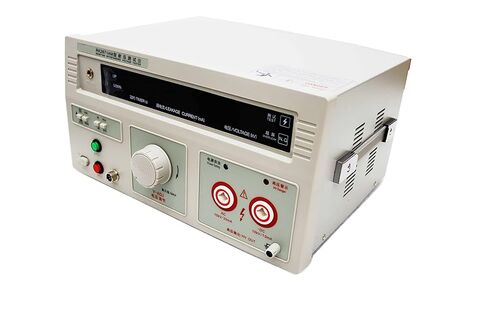

Model RK2671AM
Description Klgital display with remote control
Test Voltage (AC) 0~10KV +/-5%
Test Voltage (DC) 0~10KV +/-5%
Leakage Current (AC) 0~2/20mA +/-5%
Leakage Current (DC) 0~2/10mA +/-5%
Timing (s) 0~99s; Manual control
Pmax 100VA
Converter Volome Converter Volome
Intput Voltage(Power) 110V
Weight 40lbs

Pre-used Caution
Read the following items carefully before operating RK267 series voltage withstand test instrument 1. Use three-hole power supply plug and insure GND connection well.
2. GND port and power supply GND port should be connected well
3. Wear insulation glove, stand on insulation mat
4. Anti-clockwisely circumvolve “V-ADJ” rotary switch to the maximum before turn on test instrument.
5.Before preset all functions, reset instrument
6. Don't connect test port and test wire when doing test 7. Don't connect HV output port with shield box or GND wire to avoid instrument damage.
8. Turn off power when accident take place
9. Examine and repair when Indicator or annunciator is out of function
10. Operate carefully to avoid hazard when take the remote test.
11.The instrument must be placed on the worktable of conductive materials
12.The operator can not wear clothes with metal decoration or wear metal accessories
13.When the tester is in the test conditions, the test line, the test probes, output end , and the test objects are all with high pressure, do not touch!

Item Included(142011)
1×Withstand voltage test equipment
1×High voltage test bar
1×Remote control test bar
1×Ground wire
1×power cord
