DIN Rail Mount Paddle Rocker Switch Module, 10Amp 250VAC / 50VDC (2 Channel)

KWD 9.500
Brand
HCDC
Style2 Channel
– 1 +

Special Features

  • Rated voltage: 250VAC or 50VDC. Rated current 10 Amp (for per channel).
  • ON-OFF Paddle rocker switch.
  • Terminals pitch 7.62mm/0.3", removable cover, Metric M3 screw. With vinyl-insulated spade connectors, can support cable 16 - 14AWG / conductor cross section 1.5 - 2.5 square millimeters.

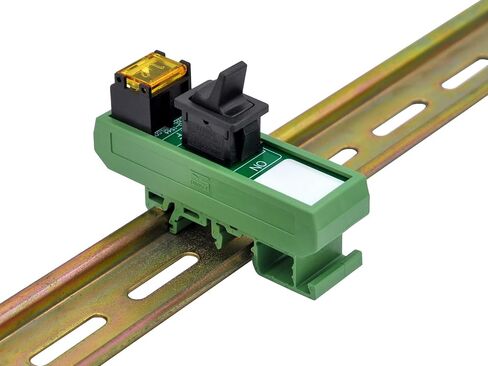

  • High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail.
  • UL CE certified fireproof nylon material housing carrier. UL 94-V0 certified FR-4 fiberglass PCB. CE CQC certified terminal blocks.

Description

1, Rated voltage: 250VAC or 50VDC. Rated current 10 Amp (for per channel).
2, ON-OFF Paddle rocker switch.
3, Terminals pitch 7.62mm/0.3", removable cover, Metric M3 screw. With vinyl-insulated spade connectors, can support cable 16 - 14AWG / conductor cross section 1.5 - 2.5 square millimeters.
4, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail.
5, UL CE certified fireproof nylon material housing carrier. UL 94-V0 certified FR-4 fiberglass PCB. CE CQC certified terminal blocks.
