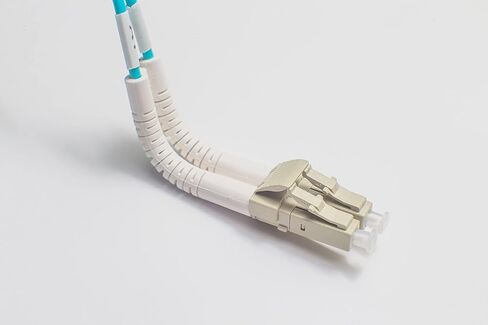

FCD - 1M OM4 LC LC Fiber Optic Cable | AnyAngle 100G Plenum Duplex 50/125 LC to LC Multimode Jumper 1 Meter (3.28ft) | Length Options: 1M-30M | 40/100g sfp+ qsfp 100gbase ofnp mmf-lc-lc

KWD 10
Length1 Meter (3.28ft)
– 1 +

Special Features

  • Fiber Cable Description: AnyAngle OM4 LC to LC Fiber Patch Cable 5 Meter | 100Gig Duplex Multimode fiber optic cable, 50/125 Corning optical fiber cores, aqua OFNP (Plenum Rated), 2.0mm outer diameter, zip-cord reinforced, jacket. | Education, Corporate, Military/Defense, Government, Healthcare, Finance, General Commercial, Computer Networking Applications.
  • Fiber Cable Description: AnyAngle OM4 LC to LC Fiber Patch Cable 5 Meter | 100Gig Duplex Multimode fiber optic cable, 50/125 Corning optical fiber cores, aqua OFNP (Plenum Rated), 2.0mm outer diameter, zip-cord reinforced, jacket. | Education, Corporate, Military/Defense, Government, Healthcare, Finance, General Commercial, Computer Networking Applications.
  • Fiber Patch Cable Details: 5 Meter (16.40 feet), 90° AnyAngle Boot, Duplex (2 fiber strands), light weight, 2.0mm outer diameter, zip-cord reinforced, LC to LC AnyAngle terminated (Max Connector Loss: 0.50 dB, Typical Connector Loss: 0.30 dB, Typical Return Loss -25 dB), Multimode Fiber (MMF) Optical Patch Cable / Jumper Cord.
  • Core / Cladding: Corning 50µm (micron) diameter fiber core / 125µm diameter cladding (1 micron is 1 one-millionth/1 meter). The fiber optic core is surrounded by a transparent, low refraction, cladding material. Light is contained within the fiber core (total internal reflection) causing the fiber within the patch cord assembly to act as a wave-guide. Light travels through the fiber bouncing off the boundary between core & cladding.
  • Optical Modality Details for OM4 Ethernet Over Multimode Fiber: 3500 / 4700 MHz-km Modal Bandwidth 850nm / 1300nm | Fast Ethernet 100Base-FX 2000m | 1Gb (1000Mb) Ethernet 1000Base-SX 550m (Requires mode-conditioning patch cord) | 10Gb Ethernet 10GBase-SR 400m | 40Gb Ethernet 40GBase-SR4 150m (550m QSFP+ eSR4) | 100Gb Ethernet 100GBase-SR10 150m.
  • Fiber Network Bandwidth: 3600/500 MHz-km @850/1300 nm (OM4 - Optimized for 850nm VCSELs / higher speed)

Description

AnyAngle OM4 LC to LC Fiber Patch Cable 5 Meter | 100Gig Duplex Multimode fiber optic cable, 50/125 Corning optical fiber cores, aqua OFNP (Plenum Rated), 2.0mm outer diameter, zip-cord reinforced, jacket. | Education, Corporate, Military/Defense, Government, Healthcare, Finance, General Commercial, Computer Networking Applications.
