DC Buck Converter, 24V 12V to 5V Step Down Converter (Accept DC 9-36V Inputs) 8A 40W with Isolation Input/Output Waterproof
Buck Converter Safety Instructional Manual
1. The load connected to the output end of the dc transformer should not be more than max listed load power, any higher rated load will cause damage to the power regulator.
2. Can not used long time by the MAX. If your device's load is close to MAX power, please select a higher power converter.
3. Please connect the converter and your device according to the wiring diagram provided.
4. The negative pole (ground) cannot be shared, and the negative poles of the input and output must be used separately, otherwise there will be no isolation.
Features:
-Isolation Input/Output, protect electrical appliances and reduce the risk of fire and explosion. More security.
-IP67 Protection grade, waterproof and anti-shock protection.
-More than 96% power conversion efficiency.
-Si-Fe Cores magnetic loop, high temperature resistance and super stability.
DC Power Voltage Converters Specifications:
Material: Plastic, Electronic Parts
Input: DC 9-36V
Output: DC 5V 8A 40W
Conversion Efficiency: More Than 96%
Overtemperature Protection: 150℃
Waterproof Grade: IP67
Connection Wire Length: 12cm(4.7 inches)
Mounting Hole Diameter: 5mm(0.2 inch)
Mounting Hole Distance: 65mm(2.56 inches)
Body Size: 74mm x 74mm x 31mm(L*W*H)
Net Weight: 264g

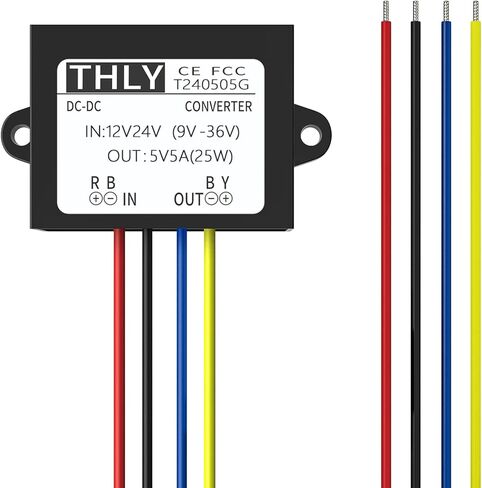

Voltage Reducer Connection:
Input: red(+) black(-)
Output: yellow(+) blue(-)
Protection: input transient high voltage protection, output over-current protection, chip over-temperature protection.
(please note that there is no input short circuit protection and reversed connection protection, please connect wires correctly, or the power may be burnt)
Package Includes:
1 x 9-36V to 5V 8A 40W Buck Converter
