QSFP+ to CX4 Cable (DAC) 10Gb/s InfiniBand Twinax Copper Cable, Passive, 1-Meter(3.3ft)

KWD 5.500
Brand
10Gtek
Weight
0.9 kg
Size1m★SALE★
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【QSFP+ (Quad Small Form-factor Pluggable Plus)】This is a high-speed four-lane fiber or copper interface that can reach data rates of 10 Gbps or higher per lane, so a QSFP+ port can provide up to 40 Gbps of aggregate bandwidth.
  • 【CX4 Cable】The CX4 standard is a copper cable solution designed for InfiniBand and early 10 Gigabit Ethernet applications. It uses a Twinaxial (dual-axial) structure to achieve high-bandwidth, low-latency data transmission over short distances.
  • 【10 Gb/s InfiniBand Twinax Copper Cable】This cable is suitable for InfiniBand networks and supports data transfer rates of 10 Gbps. Because it is a copper Twinax cable, it is particularly suitable for direct interconnection within short distances. It is usually more common in equipment connection scenarios between racks within data centers.
  • 【Passive】Indicates that this is a passive cable, meaning it has no built-in signal amplification or regeneration electronics and relies on the electrical properties of the cable itself for signal transmission.
  • 【CAB-QSFP/CX4-P1M】QSFP+ to Cx4/4x cables use cutting edge technology to provide an excellent hybrid cable solution for CX4/InfiniBand and QSFP rated switches, network adapters, and storage arrays.

Description

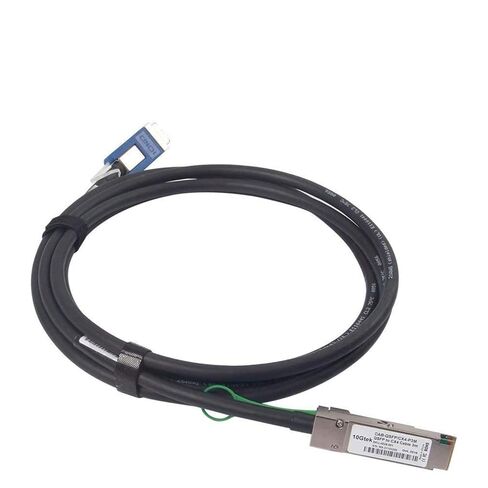

10Gtek's CAB-QSFP/CX4-P1M, QSFP+ to Cx4/4x cables have an QSFP+ connector and a Cx4/4x infiniband connector at the two sides of the cable respectively. The Quad Small Form-Factor Pluggable Plus (QSFP+) interface provides a low-profile, high-bandwidth, low power-consumption interconnect solution for HPC computer network and large data centers. They are commonly used for DDR/SDR infiniband applications.
Specifications:
QSFP to CX4(SFF-8470) Connetor
Copper Passive
1-Meter
AWG30
Low power consumption
Excellent EMI performance
High reliability
Zinc die-cast QSFP connectors with pull-release latch
SFF-8470 connectors with side squeeze latch
High performance 8 pair wire construction
Low cross-talk and pair-to-pair skew
Fully compliant to QSFP MSA
RoHS Compliant
Wide operating temperature range:
Standard: 0ºC to +70ºC
Industrial: -40ºC to +85ºC
Applications:
10-Gigabit Ethernet
QSFP, 10GBASE-CX4 and SDR/DDR InfiniBand
