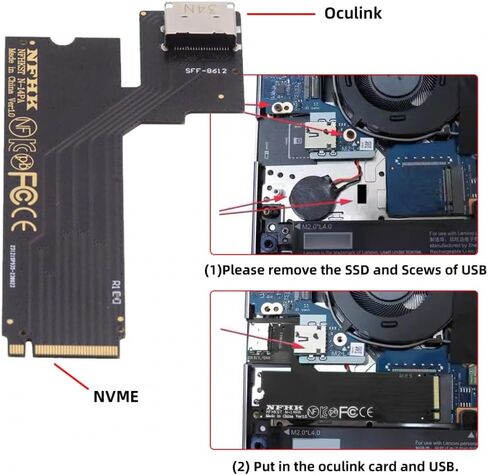

CY Card PCI-E 4.0 M.2 M-Key to Oculink SFF-8612 SFF-8611 Host Adapter for 2022-2023 ThinkBook 16+ External Graphics Card & SSD

This convertor only work for 2022-2023 ThinkBook 16+ Laptop, Not work for 14+ and other laptop.
The convertor expands the system by one SFF-8612 interface.It can be connected e.g. one SSD or Graphics Card by using an optional cable+power.
The card transmits PCI Express 4x signals using the NVMe protocol.Data transfer rate up to 32 Gbps
OCuLink is a peripheral connection standard that allows you to connect PCIe devices using an external cable.It offers higher bandwidth, lower cost, and better performance for external graphics cards & SSD.
The speed and other properties is not changed,only form conversion interface.Transparent to the operating system and does not require any software drivers.

PCI-E 4.0 M.2 M-key to Oculink SFF-8612 SFF-8611 Host Adapter for ThinkBook 16+ Laptop External Graphics Card & SSD

This convertor only work for ThinkBook 16+ Laptop, Not work for 14+ and other laptop.

The convertor expands the system by one SFF-8612 interface.

It can be connected e.g. one SSD or Graphics Card by using an optional cable+power.

The card transmits PCI Express 4x signals using the NVMe protocol.

Specification:

Connectors:

1 x OCuLink SFF-8612 female

1 x 67 pin M.2 Key M male

Data transfer rate up to 32 Gbps

Supports NVM Express (NVMe) 1.2
