Specifications:
Type(Optional): #1(9-10A), #2(10-13A)

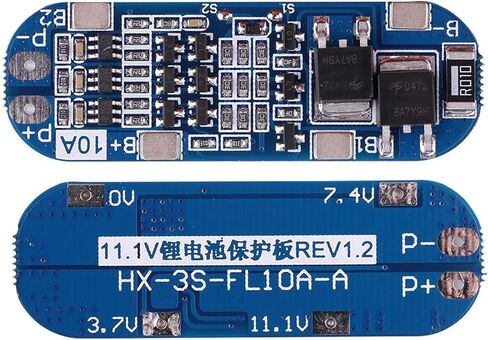

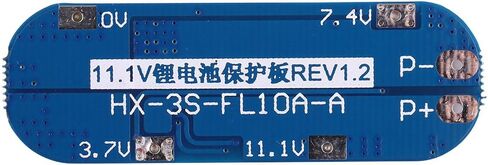

Model: 1#:HX-3S-01, 2#:HX-3S-FL10-A
Size:
#1: 50×16×1.0mm/1.97×0.63×0.04 inch
#2: 53×17×4.0mm/2.09×0.67×0.16 inch
Over voltage range: 4.25-4.35v±0.05v
Over discharge voltage range: 2.3-3.0v±0.05v
Maximum operating current: 6-8A
Maximum transient current: #1: 9-10A, #2:10-13A
Quiescent current: ＜ 30uA
Internal resistance: ＜ 100mΩ
Charging voltage: 12.6V - 13V
Working temperature:﹣40~﹢50℃
Storage condition:﹣40~﹢80℃
Effective life: >30000h
Short circuit protection: Yes, delayed self recovery
The component included:
#1: 1 pcs S-8254AA chip, 4 pcs AO4407
#2: 1 pcs 2110-cb chip, 2 pcs AOD472

Notes:
1. Higher than 3A current discharge product, the discharge rate of battery discharge is 3C.
2.Multiplier calculation formula: 1C battery, 2000 capacity is equal to 2AH * 1 = 2A maximum working current.
3C ratio battery, 2000 capacity is equal to 2AH * 3 = 6A maximum working current.
3.In the process of use, if the battery heat, the battery power is not applicable. This situation cannot be used for a long time.Otherwise, the battery will soon be damaged.

Package Included:

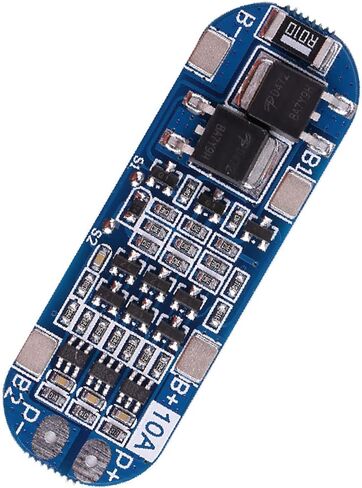

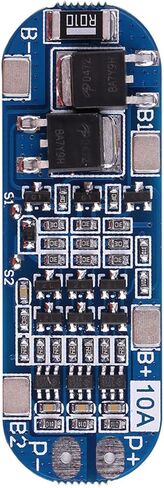

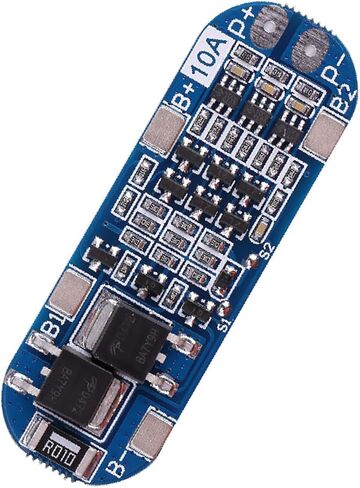

1×PCB Board(have assembled)
