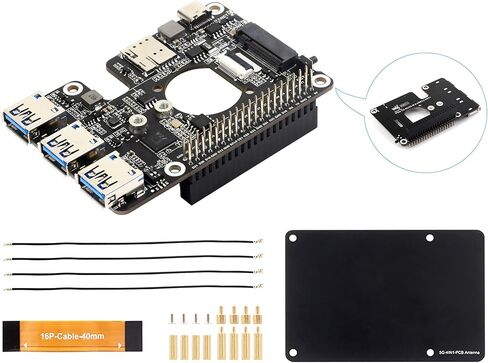

PCIe to M.2 4G/5G and USB 3.2 HAT+ for Raspberry Pi 5, PCIe to USB3.2/M.2 Adapter Board Compatible with Pi5 and 4G/5G Modules with M.2 Key B Interface, with 3X USB 3.2 Gen1 Ports, 5G-4IN1-PCB Antenna

PCIe TO 4G/5G M.2 and USB 3.2 HAT+ is a PCIe to USB3.2/M.2 adapter board designed for Raspberry Pi 5, is compatible with 5G modules in 3042/3052 size, supports Gen2 mode and high-speed communication

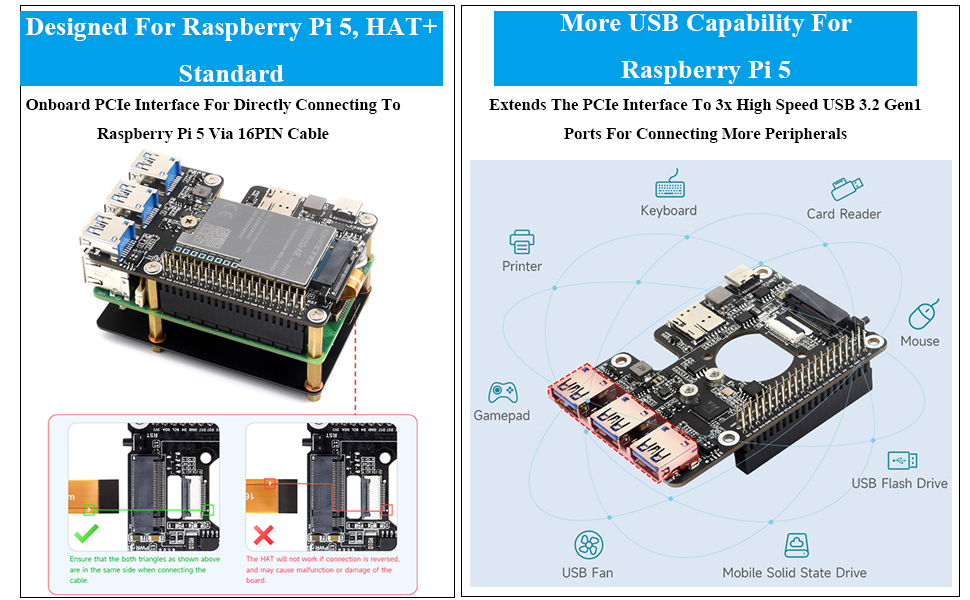

for Raspberry Pi 5: HAT+ standard design with onboard I2C. Onboard PCIe interface for directly connecting to Raspberry Pi 5 via 16PIN cable
More USB Capability For Raspberry Pi 5: Extends The PCIe Interface To 3x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals
Compatible With Multiple 4G/5G modules with M.2 Key B interface: Onboard M.2(NGFF) Key B slot, supports SIM7600XX-M.2, SIM82XX and RM5XX series 4G/5G modules and is compatible with 3042/3052 packages
Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc
Comes with 5G-4IN1-PCB Antenna: Supports top and bottom mounting, easy to install, good communication effect. Reserved Airflow Vent For Cooling Fan: More Airflow for Pi5, Faster Cooling Effect, More Stable Operation

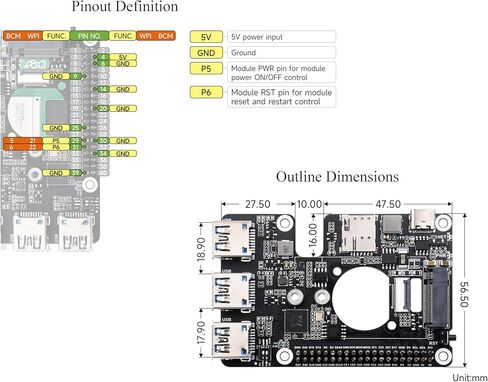

Onboard power monitoring chip and EEPROM: for real-time monitoring voltage, current and power of module Via I2C. Supports saving HAT+ ID and product information, compatible with HAT+ standard
Provide Online Development Resources /User Manual: bit.ly/4eBCXG6
