Specifications:
Large Discharge Current: 15A
Momentary Discharge Current: 25A
Voltage: 21V
Current: 15A(.)
Overcharge Detection Voltage: 4.28±0.05V
Overcharge Delay: 0.5S
Overcharge Cancel Voltage: 4.08±0.05V
Over-discharge Detection Voltage: 2.55±0.08V
Over-discharge Detection Delay: 0.1S
Over-discharge Cancel Voltage: 2.9±0.1V
Overcurrent Detection Voltage: 150mV
Overcurrent Detection Delay: 9mS
Overcurrent Current: 30±3A
Cancel Condition: Disconnect Load
Short Circuit Condition: Outside Load Short Circuit
Short Circuit Detection Delay: 250uS
Cancel Condition: Disconnect Load
Main Circuit Conduction Internal Resistance: ≤20mΩ
Working Current: ≤30uA
Sleeping Current(Battery Over-discharge): ≤10uA
Operating Temperature:﹣30℃~﹢80℃
Size: 88×17×3mm/3.46×0.67×0.12"

Package Includes:

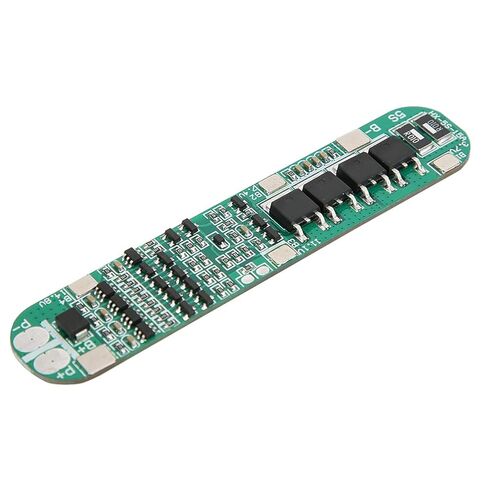

1×5S Lithium Battery Board
