Overview
RP2040-BLE is a mini RP2040 development board, with Bluetooth 5.1 dual mode function, allowing controlling by serial AT commands for quick start-up, which can realize Bluetooth wireless communication. With 14 multi-function GPIO pins on a very small board and castellated holes on the PCB edge, it is easy and fast to integrate into your project.

Board specifications

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of onboard Flash memory
Supports Bluetooth 5.1 dual mode function
Onboard Bluetooth module, allows controlling by serial AT commands for quick start-up

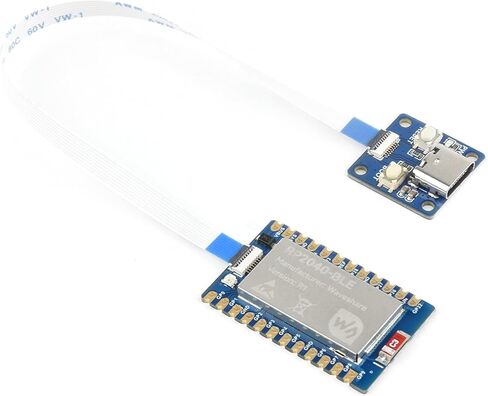

Onboard FPC 8P connector, adapting USB Type-C port via adapter board
Castellated module allows soldering direct to carrier boards
Drag-and-drop programming using mass storage over USB
Low-power sleep and dormant modes
Adapting 24 × pins including 14 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 14 × controllable PWM channels
Temperature sensor
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support

SupportArduino, C/C++, MicroPython: Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Comes with Online Tutorial and Online Development Resource: n9.cl/xwy1j

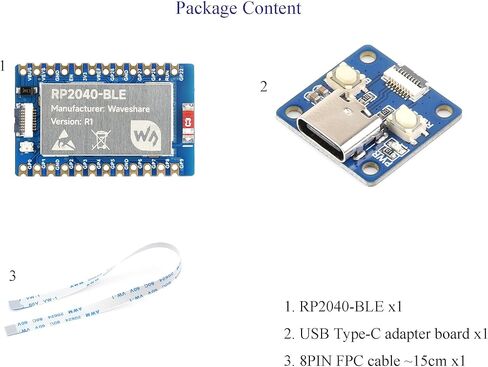

Package Content
RP2040-BLE x1
USB Type-C adapter board x1
8P- FPC cable ~15cm x1

Note

1.Please do not unplug the cable with electricity, otherwise it may lead to a short circuit.
2. When installing the cable, it is important to pay attention to its proper connection in the center and ensure that it is inserted fully into the socket. Incorrect installation may result in connection issues or even short circuits.
