Product Description:
1. Red, Green, Blue (RGB), and White Light Sensing with IR Blocking Filter
2. Programmable Analog Gain and Integration Time.
3. 3,800,000:1 Dynamic Range
4. Very High Sensitivity ? Ideally Suited for Operation Behind Dark Glass
5. Maskable Interrupt
6. Programmable Upper and Lower Thresholds with Persistence Filter
7. Power Management
8. Low Power: 2.5-uA Sleep State
9. 65-uA Wait State with Programmable Wait State Time from 2.4 ms to > 7 Seconds
10. I2C Fast Mode Compatible Interface
11. Data Rates up to 400 kbit/s
12. Input Voltage Levels Compatible with VDD or 1.8 V Bus
13. Register Set and Pin Compatible with the TCS3x71 Series
14. Small 2 mm*2.4 mm Dual Flat No-Lead (FN)
Applications:
1. RGB LED Backlight Control 2. Light Color Temperature Measurement 3. Ambient Light Sensing for Display Backlight Control 4. Fluid and Gas Analysis 5. Product Color Verification and Sorting Packaging includes:

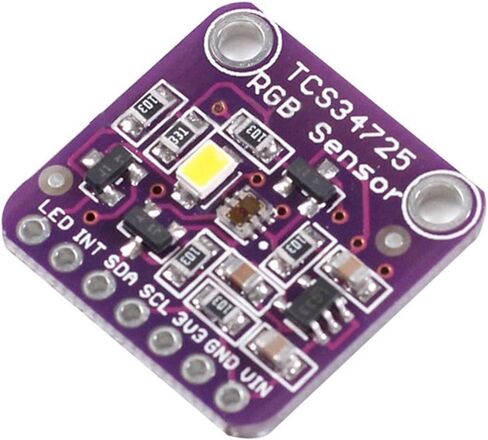

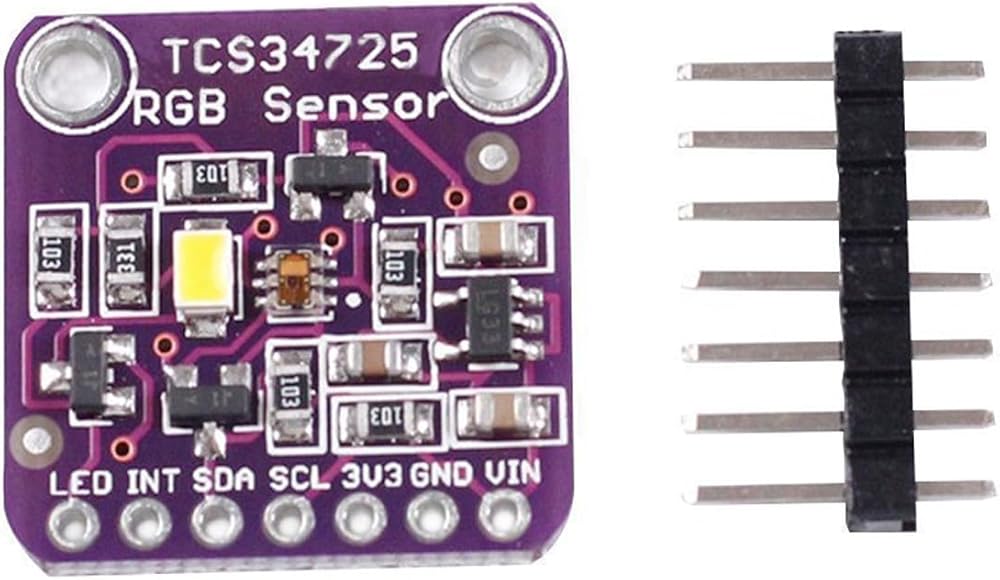

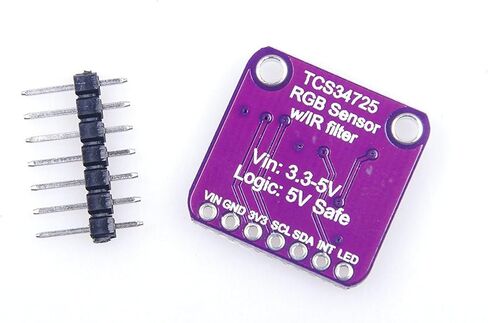

1* TCS34725 RGB Color Sensor
