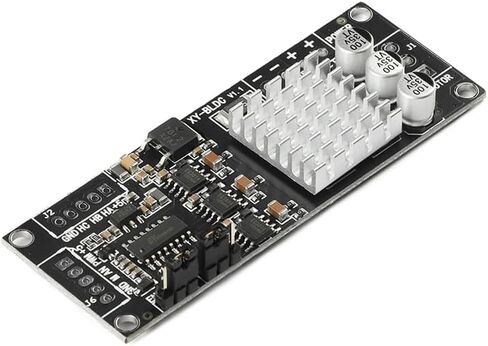

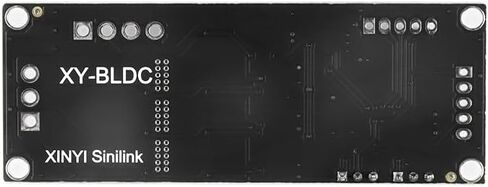

XY-BLDC 3 Phase DC Brushless Hall Motor Controller Module 10KHz PWM 12V-30V 200W Brushless Motor Drive Board

KWD 6
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • DFN Packaging Technology BLDC Wide Voltage 12-30V High Power 200W DC Three Phase Brushless Hall Controller
  • Supports PLC 0-5V analog control and PWM to 0-5V control, only suitable for DC brushless Hall motors with an electrical angle of 120 degrees
  • Product Name: 200W Brushless Hall DC Motor Driver
  • The 5V, GND motherboard comes with a 5V power supply (capable of external power supply, with a current not exceeding 10mA)
  • The speed pulse signal output has an amplitude of 5V, and each pulse represents one revolution of the motor.

Description

Product parameters
Product Name: 200W Brushless Hall DC Motor Driver
Model: XY-BLDC
Working voltage: 12-30V
Maximum current: rated 7A, peak 10A
Maximum power: 200W
Overcurrent protection: Yes
Forward and reverse: Yes
Brakes: Yes
Speed regulation PWM: Yes
Speed regulation analog quantity: Yes
Product size: 80MM long * 30MM wide * 10MM high
Product weight: 15g
