IP67 Waterproof 0-190 ohm Signal 52mm Marine Trim Gauge UP DN Boat Trim Balance Gauge Meter Trim Tilt Indicator with Red Backlight

KWD 7
Brand
BLUERICE
ColorBlack
– 1 +

Special Features

  • IP67 waterproof and dustproof grade.
  • Working Signal: 0-190 ohm. Match your trim sensor signal 0-190 ohm, please confirm the signal before purchase.
  • Easy to install. Open a hole in the panel for 52mm(2 1/16") Put the gauge in the hole, make a clearance for 70mm ((2 3/4”) on the behind panel to match the gauge. Using M4 nut and C type bracket to seal up the gauge.

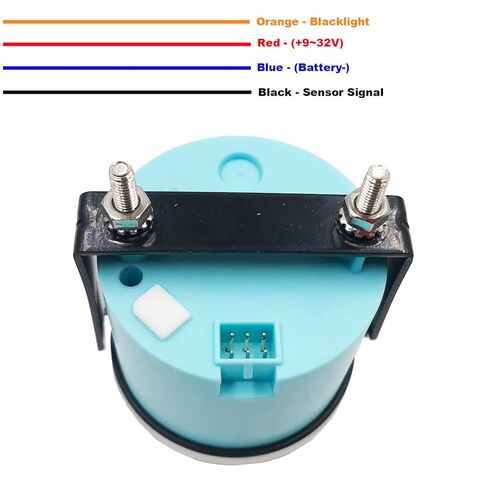

  • Wire Diagram: Red wire --- Power Positive. Orange wire (backlight) --- Power Positive. Blue wire --- Power Negative. Black wire---Sensor signal.

Description

Description:
-Fixing dimension: 52mm(2")
-Indicating Range:8-16V
-Working Voltage: 9-32VDC
- Operating current: ≤60mA
- Operating temperature: -30~+75℃
- Storage temperature: -40~+85℃
-Working Signal: 0-190 ohm
- Red backlight
-Protection grade is IP67
-Convenient Installation by multi-plug socket connecting way;
-With curved glass (with anti-fogging function)
-Operation mode: LCD display
-Use moving-magnet principle to drive the needle, featuring good endurance and anti-vibration.

Package Includes:
1x Marine Trim Gauge
1x Multi-plug socket
1x Installation Instruction
