1. Made of stainless steel of good and resistant.
2. The wire screw set is placed in the screw hole of the workpiece such as aluminum alloy to form a standard internal thread with high strength, wear and high precision. Typical applications: high voltage switchgear, microwave communication, automotive parts, air separation equipment, radiators, etc.
3. The use of wire screw sleeves for mm ---inch threaded hole conversion is convenient and fast. The imported equipment or mechanical inch thread is damaged, and it needs to be changed to mm thread due to the supply of spare parts.
4. In the event of a threading error or repair of a damaged internal threaded hole, the threaded hole can be economically and effectively repaired by using a threaded sleeve as a means of repair. The same screws can also be used after repair. Typical application: repairing the threaded hole of the component, such as the threaded hole repair of the injection molding machine template.
5. All accessories are integrated in a box for convenient transportation and carriage.

Spec:
Item Type:Thread Sleeve
Material:Stainless Steel
Thread Insert Size:M14x1.5 Length:2D

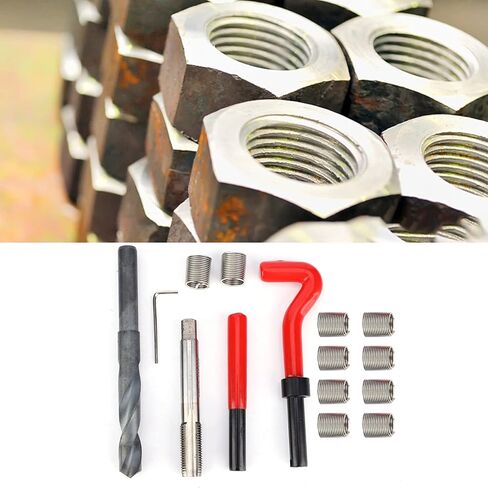

Package List:
1 x Spiral Drill
1 x Screw Tap
1 x Wrench
1 x Break Pin Tool
1 x Hex Wrench
10 x Thread Repair Insert

Note:
Instructions
Drill holes using a matching drill bit.
Use wire threaded (special) tap tapping, the tapping depth must exceed the wire screw sleeve mounting length.
Insert the wire screw into the mounting wrench with the tail down. Turn the wrench handle to screw the wire screw into the threaded hole.
Use a break pin tool to align the mounting handle (tail) with a hammer to strike the punching tool and the tail handle can be removed.
When there is a problem with the installation of the threaded screw sleeve, (such as a jumper), the threaded sleeve can be taken out by the wire threading
