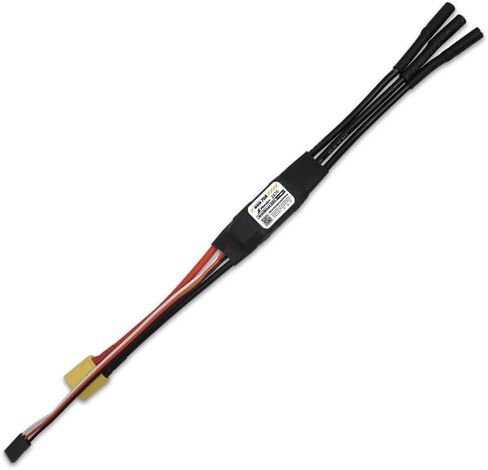

ESC 2-6S Lipo 70A FPV Controller Brushless Electronic Speed Controller Firmware BLHeli_32 5V/4A BEC Supports 128KHz PWM Frequency for RC FPV Airplane Helicopter Drone.

KWD 13.500
KWD 15
Brand
Flipenjoy
Weight
37 g
Style2670BLHeli_32+BEC
– 1 +

Special Features

  • 2-6S Brushless Electronic Speed Controller Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.
  • PCB adopts 8-layer 3OZ immersion gold process, high-power MOS combined with metal heat sink, which can effectively dissipate heat under high current load and continue to work stably.
  • RC ESC Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.
  • Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
  • Onboard RGB LED color light settings, multiple LED colors can be customized.

Description

Parameters of Product：
Model Name：ESC 2670
Processor STM32G071
Input Voltage：DC 7V-25.2V（2-6S Lipo）
Continuous Current (goodheatdissipation)70A Maximum Current(goodheatdissipation):110A
SupportFirmware:BLHeli_32AM32
BLHeli_32Firmware:SQ_G071_01
AM32Firmware:SQ_G071
SignalProtocol:Dshot(All),PWM,Oneshot,Multshot,etc.
Programming Parameter Adjustment:Support
ThrottleCalibration:Support
Timing Angle Setting:Support
Current Detection:Support
Telemetry Signal:Support
MotorSteering Settings:Support
RGB LED Color Lights:Support
Application Scenarios：FPV racingdrone,multiaxisdrones,fixedwingUAV,model ships,climbing vehicles, model cars,etc.
