Description:
Replacement for China-Made 3000/3200/3500/3550/3600/4000/4250/4500/4550 Watt 6hp/6.5hp/7hp gas generators and is suitable for many models.
Please confirm the interchange part number and compatibility before purchase, which is 290440009-02.
The voltage regulator features simple and straightforward installation and is convenient to install and remove.
With over voltage, over current and short circuit protection, the voltage regulator is long-lasting and reliable to work.
Nice replacement for the old or damaged one, our voltage regulator can last for a long time and is also reliable to use.

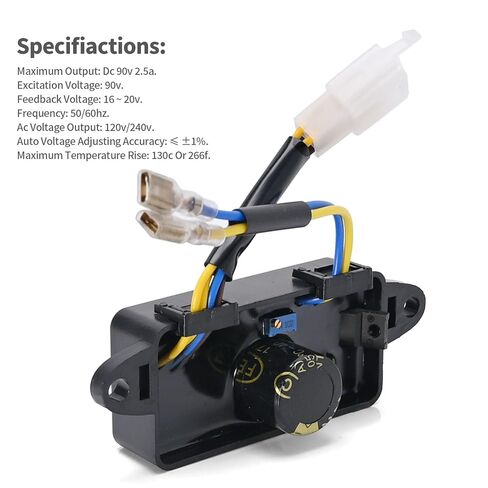

Specification:
Maximum Output: Dc 90v 2.5a.
Excitation Voltage: 90v.
Feedback Voltage: 16 ~ 20v.
Frequency: 50/60hz.
AC Voltage Output: 120v/240v.
Auto Voltage Adjusting Accuracy: ≤ ±1%.
Maximum Temperature Rise: 130c Or 266f.
Continuous Working Time: ≥ 20 Hours.
Installation-Center Distance: 99 ± 1mm (About 3 15/16 In).
Large Manual Adjustable Voltage Output Range: 160V-260V for 240V output.
Interchange part number: 290440009-02.

Fitment
Replacement for China-Made 3000/3200/3500/3550/3600/4000/4250/4500/4550 Watt 6hp/6.5hp/7hp Gas Generators.

Note
There might be a bit color distortions due to different computer resolutions.
There might be a slight errors due to different hand measurement.
A higher output AVR definitely works perfect on a generator of low power output while on the contrary, a low power output AVR CAN NOT be used for a generator of higher power output.

Package included:
1 Piece Voltage Regulator.
