Features

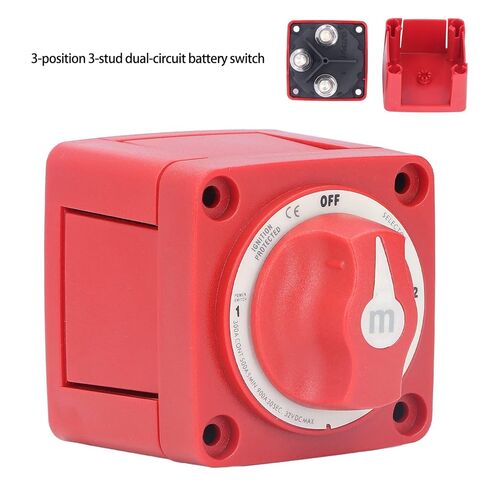

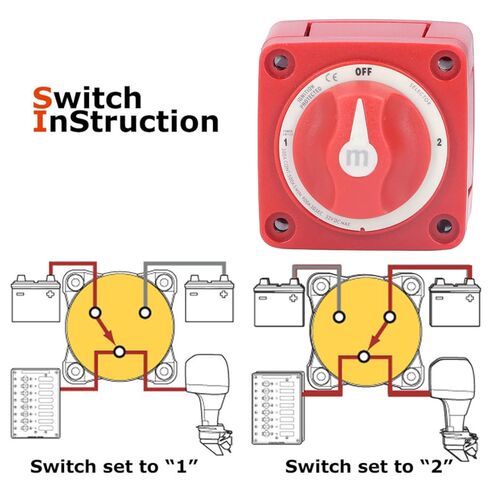

Powerful Function : 3?position 3?stud dual?circuit battery switch, switches a single battery to a single load group. Ideal for marine or RV applications.
Flexible Installation: ignition for installation aboard gasoline powered boats. Case design allows surface, front panel, or rear panel mounting.

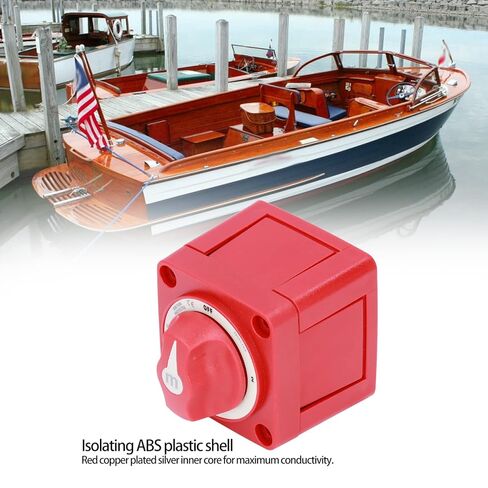

Good Conductivity: Isolating ABS plastic shell and red copper plated silver inner core for maximum conductivity.
Stable Performance: 300A battery switches can isolate the potentially destructive energy in the battery banks when boat is not in use or during emergencies.

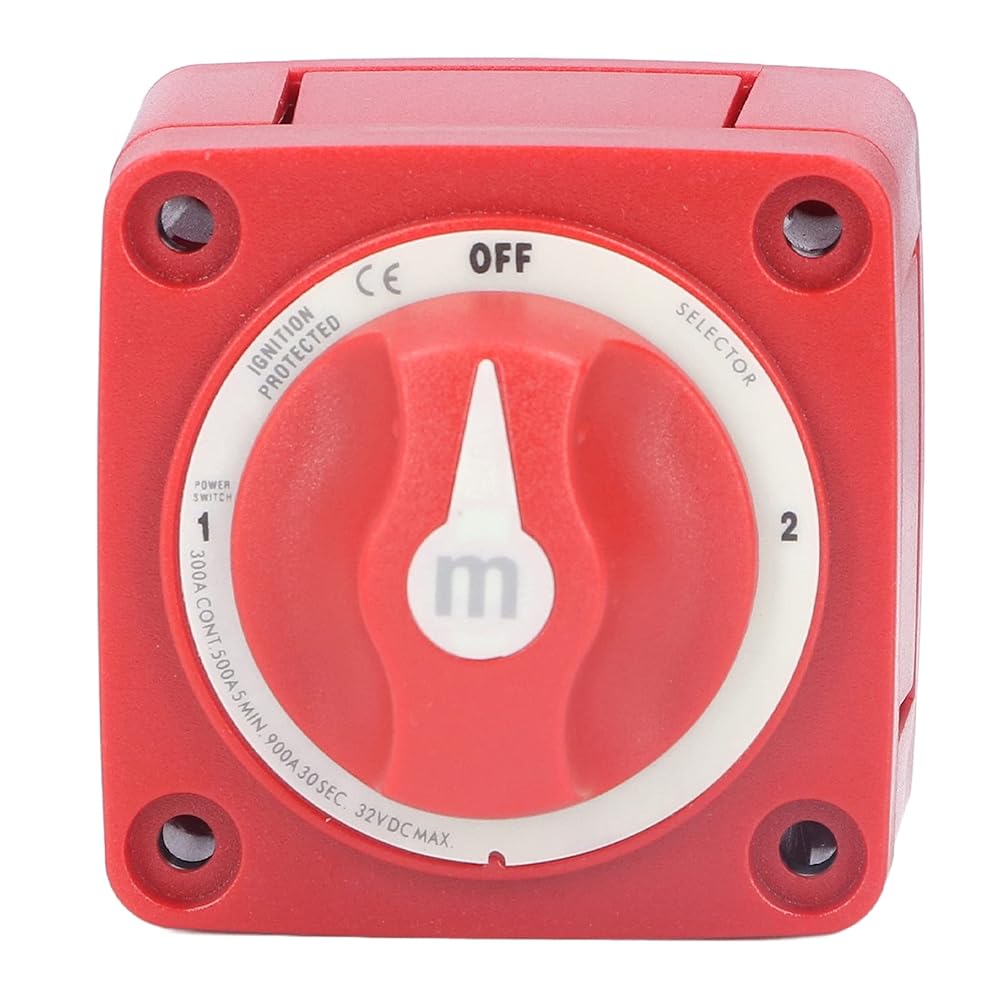

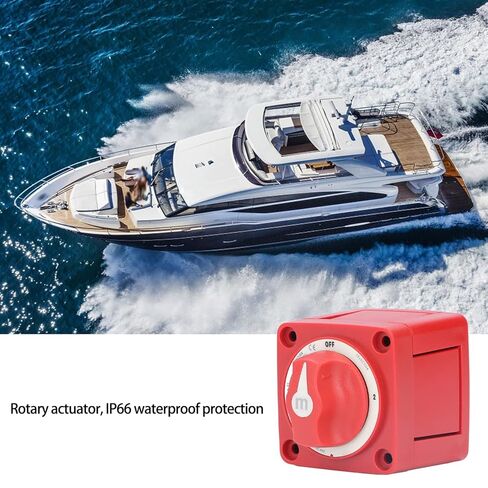

Circuit Identification: Label with OFF?1?2, rotary actuator, IP66 waterproof . Installed in the circuit, directly installed for use.

Specification
Item Type: Battery Disconnect Switch
Material: ABS plastic shell, red copper plated silver inner core
Continuous Current: 300A (500A 5min, 900A 30SEC)
Maximum voltage: 32V DC
Line Post: 3xM10
Gear Position: 3 gear position (OFF-1-2)
Type: Normally Closed
Circuit Type: 2-way
Mounting Type: Panel Mount
Actuator Type: Rotary
Waterproof Rating: IP66
Application: Ships, yachts, RVs, large trucks, modified vehicles

How to Use
Direct installation and use

Package List
1 x Battery Switch
