Specification:

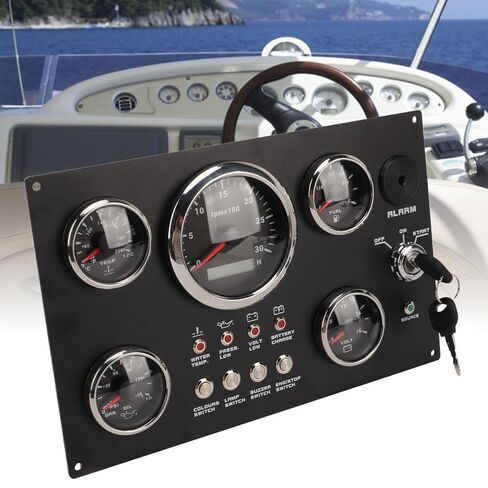

Item Type: Boat Gauge Set Instrument Panel
Material: Stainless steel and ABS

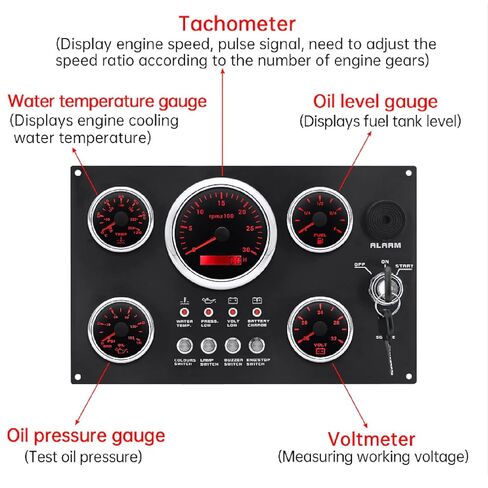

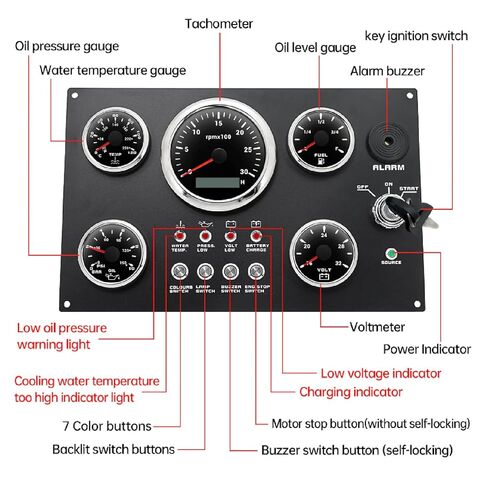

Central control modified combination instrument panel, with oil level, water temperature, voltage, oil pressure, engine tachometer, with light switch, overload alarm light function
This instrument panel can be installed in your yacht control, through the instrument data at any time to know the status of the engine
Tachometer
Install Diameter: 85mm or 3-3/8in
Engine Hours: 0.0-99999.9H
Backlight :7 Color backlight
Indicating Range: 0-3000RPM
: Pulse
Fuel Level Gauge
Sizes: 52 mm (2-1/16in)
Measuring Range: Empty - Full
Resistance: 240 (E) - 33 (F) ohms
Backlight: 7 Colors
Water Temperature Gauge
Install Diameter: Approx: 52mm/2.04in
Indication Range: 0~120℃/30-250℉
Input : 287.4-22.4 ohms
Storage Temperature: -40-+85℃
Backlight: 7 Colors
Oil Pressure Gauge
Install Diameter: 52mm or 2-1/16in
Indication Range:0-10bar / 0-150 PSI
Operating Temperature:-30-+75℃
Storage Temperature:-40-+85℃
Backlight: 7 Colors
Volt Gauge
Sizes: 52 mm (2-1/16in)
Measuring Range: 8 - 16(V)
Backlight: 7 Colors
Application: Suitable for Marine boat, yacht 12V

Package List:
1 x Gauge Set Instrument Panel( 1 x Tachometer, 1 x Water Temperature Gauge , 1 x Oil Pressure Gauge , 1 x Oil Level Gauge 1 x Voltmeter)
1 x User Manual
2 x Key
