Compatible with Boss HYD01633, HYD08831
Compatible with Trombetta 684-1211-212, 684-1211-212-02, 684-1211-212-06, 684-1251-212, 684-1261-212
Replace Part Number: M008636-000, 284080-01

Specification:
Voltage: 12V
Carry Current 150 Amps, Inrush 800 Amps
Terminals: 4
Duty: 25% Intermittent

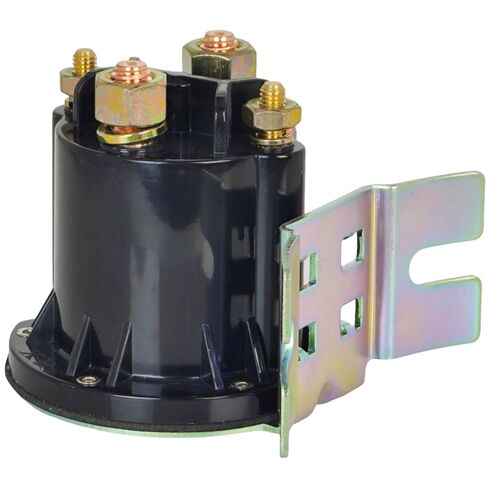

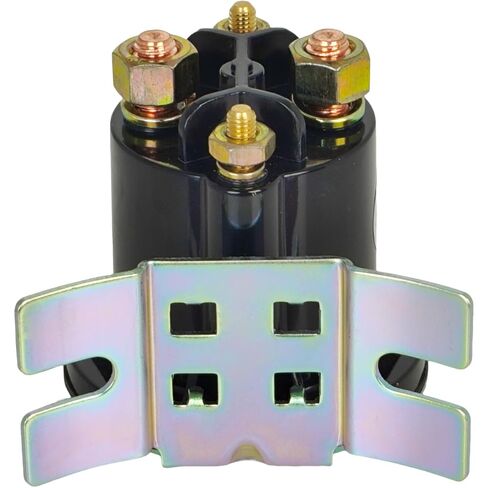

Mounting Type: L Bracket Curved
Contacts Material: Copper
(2) 5/16-24 High Current Studs
(2) Non-Grounded 10-32 Studs
Sealed Design

If your application requires a sealed or submersible design, you must have this one.Sealed design protects against dust and water jets. IP67 environmental rating allows it to be submerged into 1 meter of water for a period of 30 minutes. It is not intended to operate under water. If this unit is exposed to water and completely dried off afterwards, it should be capable of being energized again.

Mounting Instructions:
1. Select a desired mounting location
2. Using the contactor as a template, mark the centers of the mounting holes.
3. Using a ¼” drill bit, drill the holes marked in the previous step.
4. Mount the contact using ¼' bolts and nuts.
5. Wire the relay according to the wiring diagram.
