EPEVER 100A MPPT Solar Controller Max PV Input 200V 12/24/36/48V Auto Identify Battery Voltage Charge Current 100A Adjust Parameters by Remote (Tracer10420AN MT50 TS)
All electronics ship with US style plugs.You may need a voltage converter or a plug adapter.
Special Features
Function:Solar charger controller transfer sunlight power to electricity power, then charge electricity to your battery. Apply for 1250W/12V, 2500W/24V, 3750W/36V, 5000W/48V.Max solar panel input 200V. For example, if you connect to battery for system voltage is 48v, your rated charge power is 5000W. For 48V system voltage, you can make 4 pieces 12V battery in series or one piece 48V battery in parallel.
Support all kind of battery and battery voltage:Lead-acid battery,Lithium battery, User.MT50 can remote control and can monitor the controller's real-time working status and adjust the parameters. But if you want to adjust lithium parameters, please purchase WIFI or BLE or USB. Because MT50 only can adjust 10A-40A controller lithium parameters
Efficiency High:MPPT tracking efficiency above 99.5%.The typical MPPT algorithm, designed by our company, can track the real MPP quickly and accurately. It can improve the PV array's utilization rate and avoid resource waste. Maximum charge conversion efficiency as high as 98.5%.

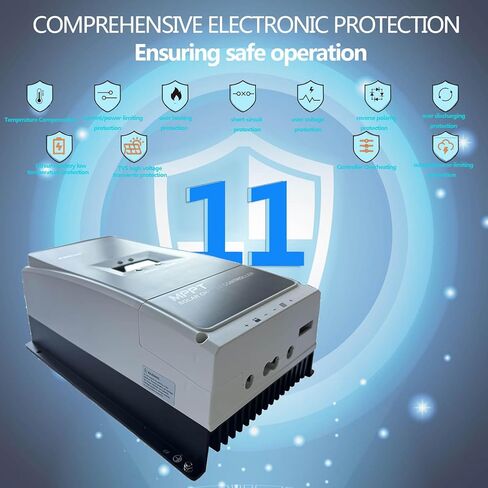

11 Kind of Protection:Temperature compensation, PV current/power-limiting protection,PV short-circuit protection, PV reverse polarity protection, Night reverse charging protection, Battery over voltage protection, Battery over discharging protection, Battery over heating protection,Lithium battery low temperature protection, Controller Overheating,TVS high voltage transients protection.
Smart Design:3 relays design for different demand:utility, generator, and load. Support up to 6 units in parallel. Remote temperature and voltage sensor design. Isolated RS-485 with 5VDC/200mA and MODBUS protocol.
Description
EPEVER 100A MPPT Solar Controller Max PV Input 200V 12/24/36/48V Auto Identify Battery Voltage Charge Current 100A Adjust Parameters
