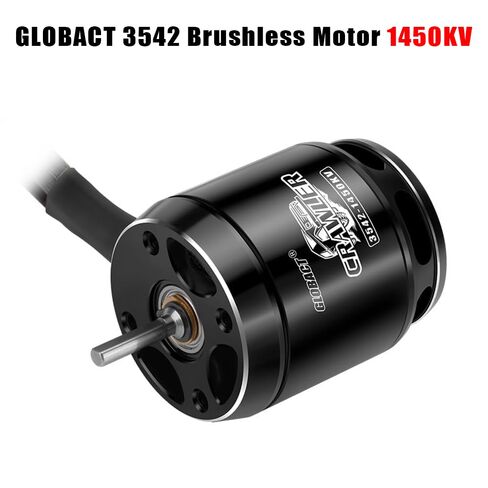

GLOBACT 1450KV 3542 Brushless Motor RC Crawler Motor for 1/8 1/10 TRX4 TRX6 Axial SCX10 I II III RC Crawler Car LCG Chassis (1450KV)

KWD 15
Size1450KV
Number of Items1
– 1 +

Special Features

  • 【Fits】External rotor 3542 brushless motor suit for 1/10 Traxxas TRX4 TRX6 Axial SCX10 I II III LCG chassis RC crawler car upgrade accessories (compatible with GLOBACT AM32 80A Brushless Crawler ESC, ASIN: B0D9NJTS9J).
  • 【Low Cogging Torque】The 14 Pole 12 slot Hi-torque rotor design provides powerful low-torque and low-speed linearity, automatically compensates for power output when encountering obstacles on uphill slopes, and automatically reduces power output when going downhill, always maintaining a stable driving speed, making the operation simple.
  • 【CNC Precision Machining】CNC Machined 6061 T6 aluminum front and rear cover.High-purity copper windings maximize efficiency. The tough stainless steel shaft( Φ 3 . 175mm), high precision, and high-quality bearing make the motor super durable.
  • 【Small Size】The motor length is 42.8mm and the width is 35mm, which perfectly solves the problem of difficult wiring of crawler vehicles due to the small internal space.
  • 【Water Proof】Protection grade IP67, excellent waterproof and dustproof performance, under various climate conditions, Easily cope with complex roads containing sand, ice, snow, and water.

Description

【Note】At low speed, the ESC uses current compensation, the current is large, so the ESC motor will heat up, but at high speed, the temperature will drop, external rotor motors all have this characteristic, which is normal.
Product Name: Brushless Motor
Color: Black
Motor Specifications:
Model: 3542
KV(RPM/Volt):1450KV
Type: Brushless
Watts: 900W
Voltage: 7.4V-22.2V (2~6S Lipo)
Max Amps: 60A
Diameter: 35mm
Length: 42.8mm
Shaft diameter: 3.175mm

Package List:
1 * Brushless Motor
