Item Type: Brushed Motor
Material: Iron,Plastic,Copper

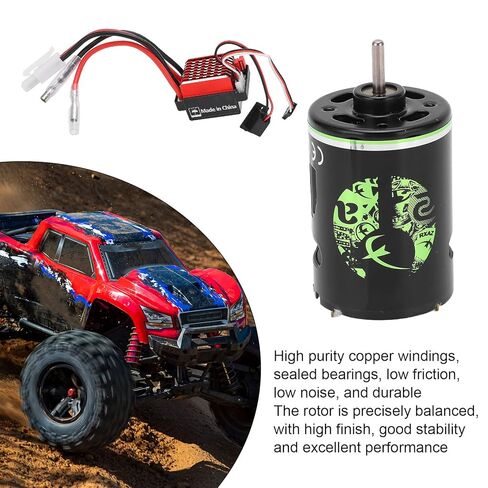

540 Brush Motor:
Product Length:Approx. 50mm / 2.0in(without Shaft)
Product Diameter:Approx. 36mm / 1.4in

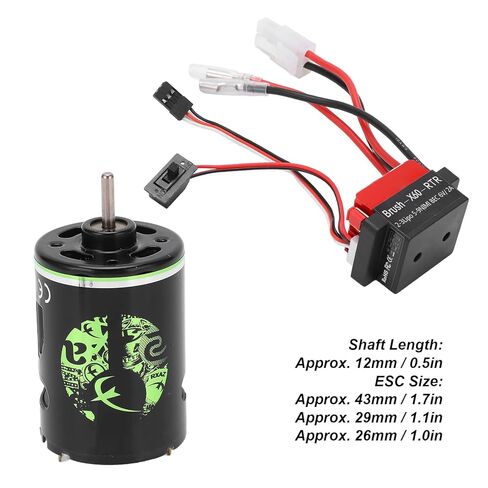

Product Shaft Length:Approx. 12mm / 0.5in
Product Shaft Diameter:Approx. 3.175mm / 0.13in

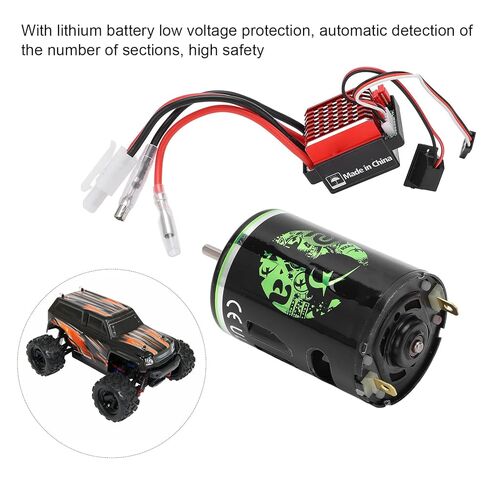

360A Brush ESC:
Model: Brush X60
Forward Continuous Current / Peak Current: 60A / 360A
Reverse Continuous Current / Peak Current: 30A / 180A
Engine Restrictions:
2S Lipo or 6nimh: 540 or 550 Engine Size: 12T or rpm 3S Lipo or 9nimh: 540 or 550 Engine Size: 18T or rpm Resistance: Fwd0.001Ω, Rev0.002Ω
Bec Output: 2A / 6V (Linear Regulator Switch)
ESC Size:Approx. 43 x 29 x 26mm / 1.7 x 1.1 x 1.0in
Running Model: Two Way,Climbing
Applicable Vehicle Types: 1/10 RV, SUV, Short Truck, Truck, Climbing Vehicle, Tank.
Scope of Application: Suitable for Axial SCX10,for Traxxas TRX4 D90,for Redcat GEN8 Brand Cars.

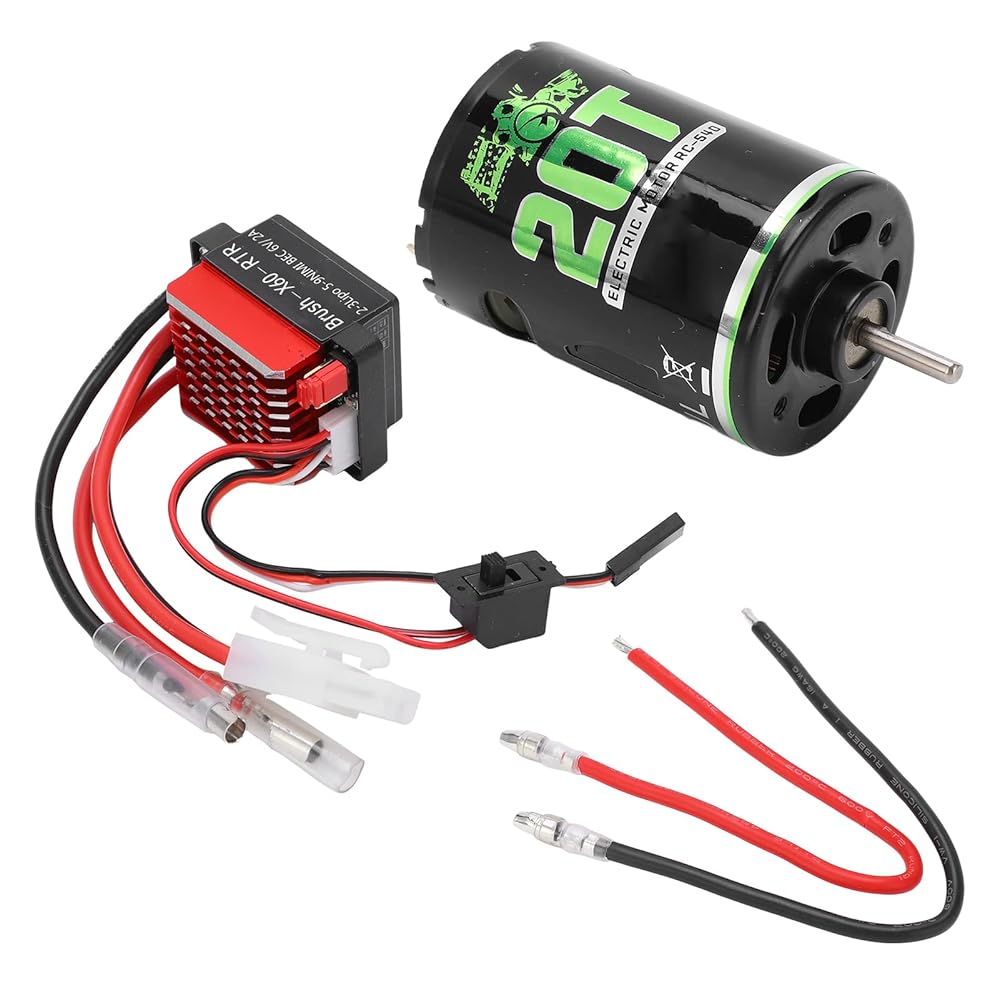

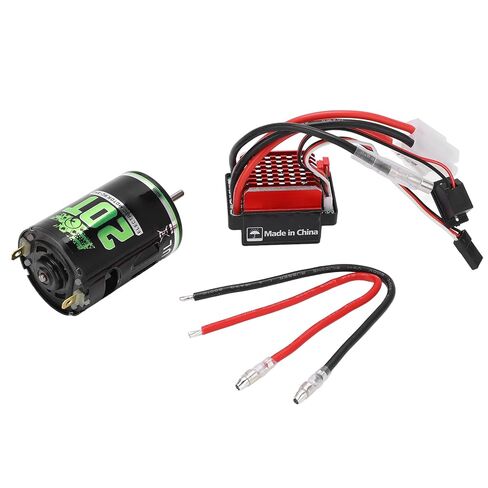

Package List：
1 x Brushed Motor2 x Wiring
1 x 360A ESC
1 x User Manual

Note:
1. Due to manual measurement, 1‑3mm error is allowed, thank you.
2. Due to the differences between different monitors, the picture may not reflect the actual color of the item.
3. This product does not have the ESC reverse connection protect function. If the power supply is reversed, it may instantly cause irreversible damage to the ESC and the battery. Please pay special attention to the polarity of the battery when using it.
4. If the motor rotates in the wrong direction, please exchange the two motor wires. Motor wires are not divided into positive and negative poles.
