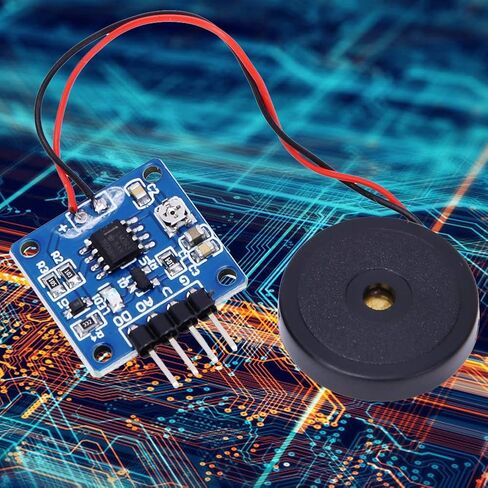

2PCS Piezoelectric Vibration Tapping Sensor Module Vibration Switch Module 5.0V DC AD DO

KWD 4.500
Brand
FTVOGUE
Category
Sensors
Weight
23 g
– 1 +

Special Features

  • An analog vibration sensor based on a piezoelectric ceramic sheet is an inverse transformation process that uses piezoelectric ceramics to generate vibration. When the piezoelectric ceramic piece vibrates, an electrical signal is generated.
  • Special sensor expansion boards are used in combination, and analog ports can be weakly perceived. Vibrating electrical signals enable interactive work related to vibration, such as electronic drum interactions.
  • ADO output: The analog voltage ceramic vibration sensor is connected to the controller analog terminal A0 according to the program. When the vibration degree is different, observing the output value of the serial port can realize the vibration-related int
  • According to the greater the vibration intension, the higher the output voltage, the sensitivity of the vibration amplitude can be adjusted by the potentiometer.
  • This product has high sensitivity and can be adjusted to respond with a mouth blow or an output with a hand tap (Low turn sensitivity is low, right turn sensitivity is high).

Description

Specification:
Item Type: Vibration Switch Sensor Module
Interface Type: AD/DO
AO: Analog Signal Output
DO: TTL Level Output
Working Temperature: -10 ° C ~ +70 ° C
Size: Approx. 20 x 20mm / 0.8 x 0.8in
Weight: 4.5 g / 0.2 oz(approx.)
Test Method and Wiring:
G (GND):: Power ground
ADO: Analog signal output
DO: TTL level output. Output signal LED indication. TTL output valid signal is high level, output control power

packing list:
2 x Module
