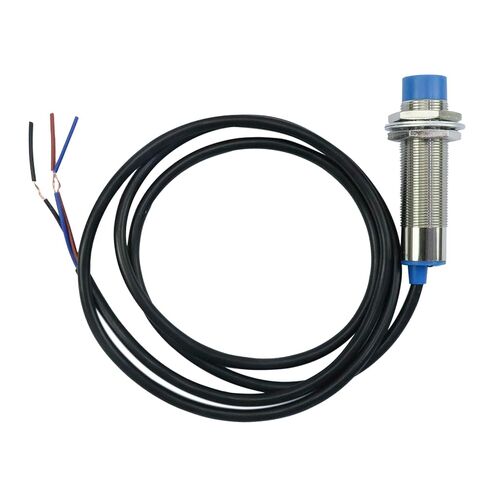

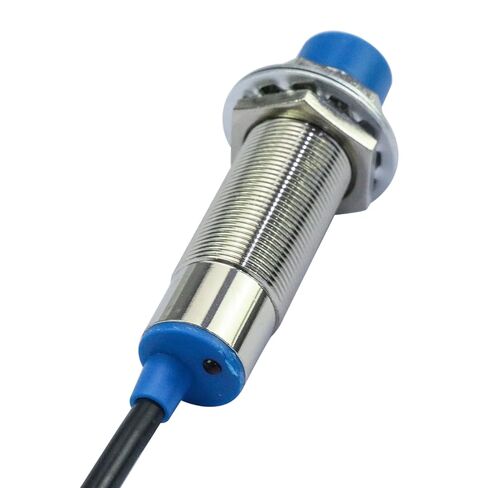

BestParts 5Pcs M18 LJ18A3-8-Z/BX NPN NO 3 Wire Inductive Proximity Sensor Switch Detector 8mm DC 6-36V

Sorry, this product is not available
Brand
BestParts
Category
Sensors

Special Features

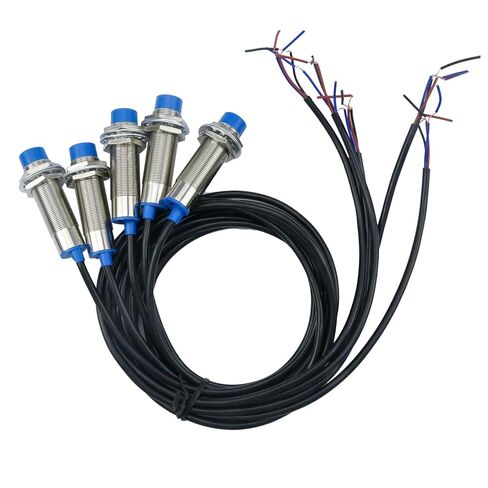

  • Model: LJ18A3-8-Z/BX; Package Content: 5 x Inductive Proximity Switch
  • Wire Type: 3 Wire Type ( Brown, Blue,Black); theory: Inductive sensor; diameter of head : 18mm; detecting distance : 8mm ± 10%; Set distance: 0-7mm
  • Output Type: NPN NO(Normal Open); Supply Voltage: DC 6-36V; Current output : 300mA; Detect object : Iron; Thread size: 18mm
  • Size : 7 x 3cm/2.8'' x 1.2'' (L*Max. Dia);Cable Length : 103cm / 40.55"
  • Ensure it is compatible with your model and check pictures for more details.

Description

Product Description：
LJ18A3-8-Z/BX
Appearance Type : Thread cylindrical
Voltage : DC 6-36V
Current Output : 300mA
Output Polarity: NPN NO(normal open)
Detect Object : Magnetic metal
Diameter of Sensor Column : 18 mm
Length of Sensor Column : 6.8 mm
Detecting Distance : 8 mm
Total Length: 115 cm/45 Inch
Protection level: IP65
External Material : Alloy(Nickel plated brass),Detection surface is ABS
Wire Type : DC 3 Wires-Brown(positive electrode)
Black(output signal), Blue(negative electrode)
