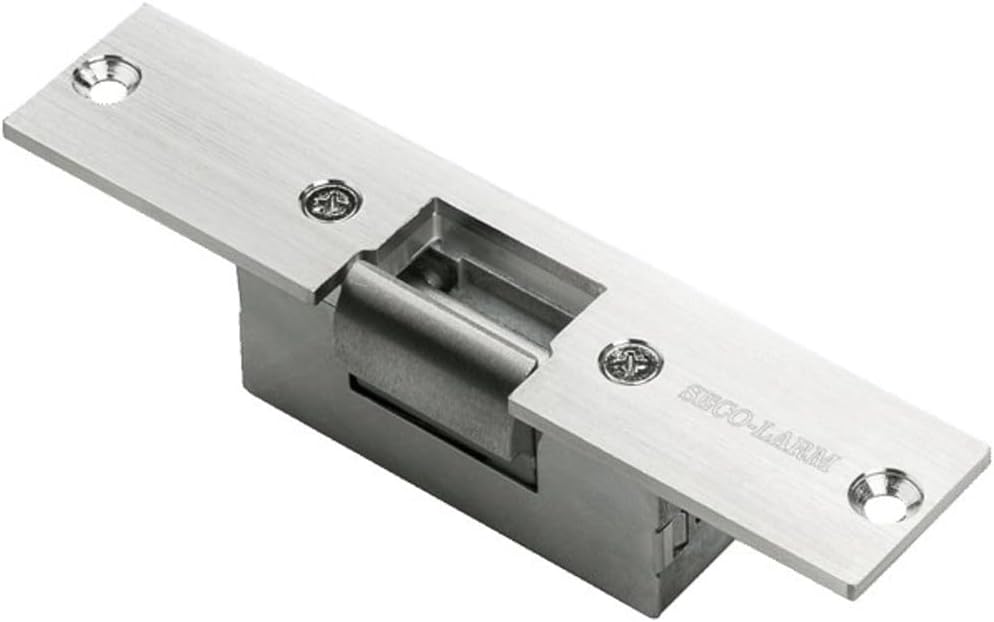

Seco-Larm SD-994A-A1SQ Reversible Electric Door Strike for Wood Doors, Symmetric, Fail-Secure Operation, 1000-lb (453kg) Jaw Strength, Tested to 500000 Cycles, 8~16VAC/12VDC Operating Voltage

The SECO-LARM Electric Strikes are the ideal way to convert cylindrical lock sets into an electronic access-controlled locking system. The strikes come in two varieties: asymmetric and symmetric. Both models come with a reversible faceplate for right-hand or left-hand doors and have a fail-secure operation.

Key Features
- 8~16VAC / 12VDC Operating voltage
- For use on wood doors
- Can be used with virtually any cylindrical-door locking system
- Fail-secure operation
- US26D Chrome faceplate
- Miniature lock body for easier installation
- Corrosion-resistant case and moving parts
- 1,000-lb (453kg) Jaw strength
- Tested to 500,000 cycles
- Reversible for right- or left-hand doors

Specifications
- Keeper depth: 21/32" (16.8mm)
- Latch depth: 3/4" (19mm)
- Strike depth: 11/2" (38mm)
- Operating Voltage: 8~16 VAC/12VDC
- Operation: Fail secure
- Current Draw: 800mA@16VAC, 750mA@12VDC
- Operating Temperature: 14°~113°F (-10°~45°C)
- Faceplate size: 5 7/8" x 1 1/4" x 1/8" (150 x 32 x 3.2mm)
- Weight: 10.3-oz (292g)
