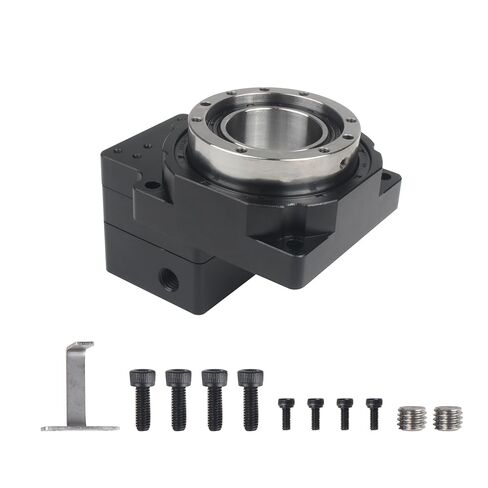

Suitable motor: The speed ratio is 5:1;This DRN60 rotary actuator is suitable for standard 100W servo motors with a motor shaft of 8mm; It can be directly connected to a stepper motor or servo motor for easy positioning and staying at any angle
High Accuracy: Positioning accuracy is less 1 arcmin,and repetitive positioning accuracy ≤15 arc seconds,the return is extremely small.It adopts a single-stage helical gear deceleration method to increase the output torque,the gear accuracy reaches level 5 through grinding, resulting in smoother meshing and longer service life
Hollow Design: The 360 degree rotating table is hollow structure design,marking it convenient for electric wiring; Equipped with photoelectric switches and induction plates, it is easy to reset and achieves high-precision positioning and control
Widely Applications: Used for applications in industrial automation equipment, dispensing machines, four or five axis machine tools, packaging machines, optoelectronic and visual inspection equipment, indexing boards, laser printers, sorting machines, robot joints, and other fields that require high precision
Introduction: This hollow rotary actuator is a new type of rotary load device used in various rotary motion situations.It adopts a high rigidity cross roller angle roller bearing,its rigidity is more than 5 times that of traditional bearings,which can withstand large inertia disk devices,and it has the characteristics of high rotational accuracy,stable rotational torque and high load-bearing capacity,which can ensure the stability and high precision of the rotating platform
