1. Easy Operation: When the gets the set times, the relay is closed, which can connect to the alarm, and you need to manually press the middle reset button before disconnection.
2. Counting Range: Enables a wide counting range from 1 to 999999, the digital counter makes the tallying much easier.
3. Connection: Equipped with NPN and PNP input port, can be flexibly connected to power supply, button, etc.
4. Extensive Using: and working with stability allows for wide application in equipment upgrading and DIY.
5. More Convenience: Both the maintenance and installation are very convenient, saving your time and labour as well.

Specification:

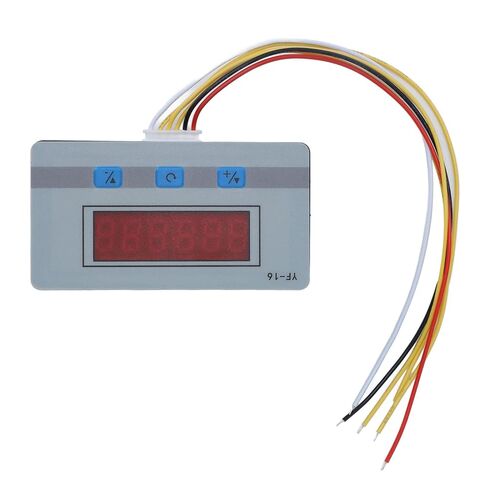

Item Type: Digital Counter
Product Model: YF-16
Input voltage: 5~24V DC, 5~24V AC (all available).
Counting Range: 1~999999 times
Wiring Port Instruction:
1. AC DC +, -: Input power;
2. NPN: NPN input terminal; (can connect to power supply negative pole, button, sensor , etc.)
3. PNP: PNP input terminal; (can connect to power supply positive pole, button, sensor , etc.)
4. Output: The output is the passive switch value of the relay.

packing list:
1 x Digital Counter

Note:
Be careful not to let the product work in rain or damp environment, and please make sure the cable is connected before use.
