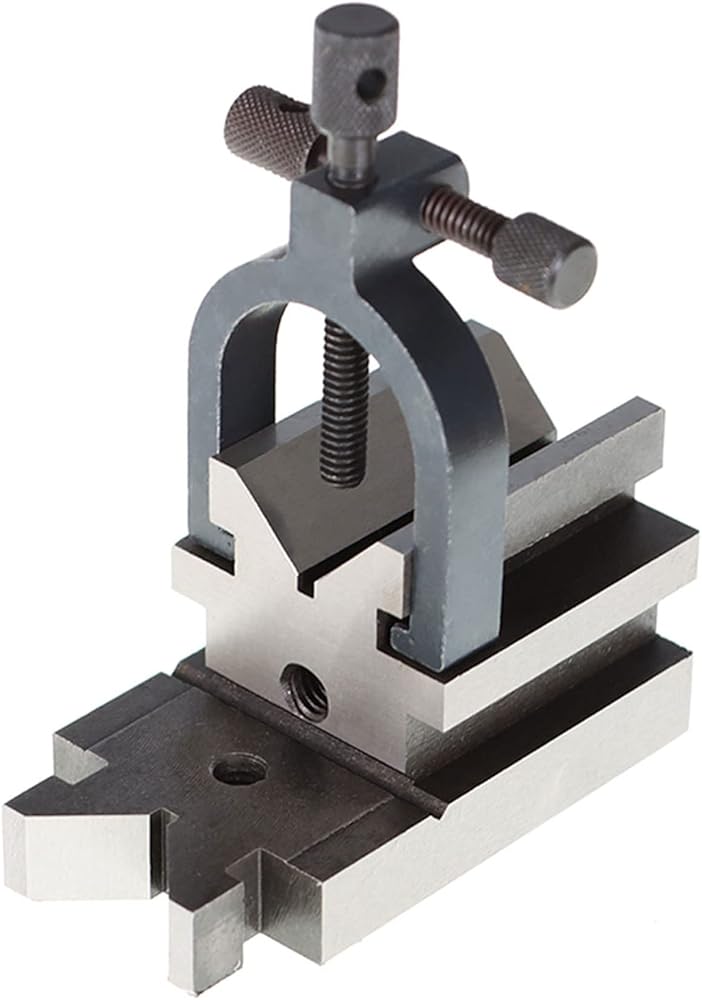

All Angle V-block and Clamp, .0003 Hardened Steel Machinist Tools V-Block with Clamps

KWD 17.500
Brand
TINVHY
Category
Calibration
Weight
1 kg
– 1 +

Special Features

  • V Blocks
  • Can be used on base, end, and flat on either sides. With adjustable side screw to prevent tilting when drilling, grinding or milling
  • Made of hardened and precision ground tool steel, this angle V-block is perfect for grinding, milling, or drilling
  • This V-clamp is 3-1/2 In long, 1-7/8 In wide, and 1-7/8 In high (including clamp) with a holding capacity of 1-5/16 In
  • Sides are parallel and V is central and ground to 0.0003In
  • V-block set has four 3/8 In-16 tapped holes, two in the bottom and one on each side for angle non-clamping; used for grinding, milling, or drilling

Description

All Angle V-block & Clamp

Feature:
Can be used on base, end, and flat on either sides
With adjustable side screw to prevent tilting when drilling, grinding or milling
Stepped groove construction
Case is hardened and ground
Made of hardened steel, top quality

Specifications:
Hardness: HRC58 to 60
Length: 3-1/2"
Width: 1-7/8"
Height: 1-7/8"
Holding Capacity: 1-5/16"
Accuracy: 0.0003"

Package Includes:
1 x V-groove
1 x Box
