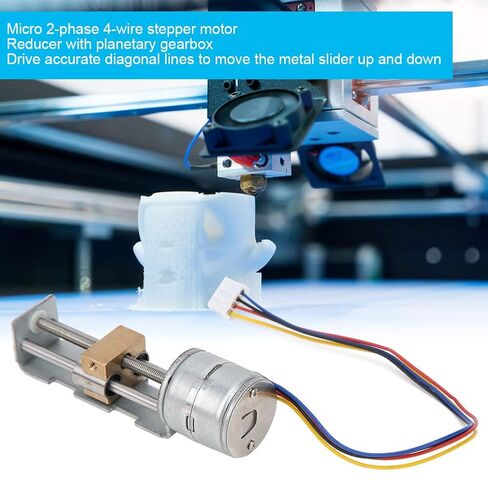

1. Can be used in DIY small sliders, projects, measuring equipment, printers.

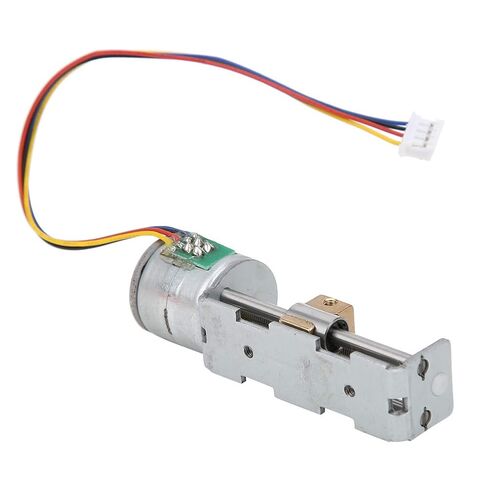

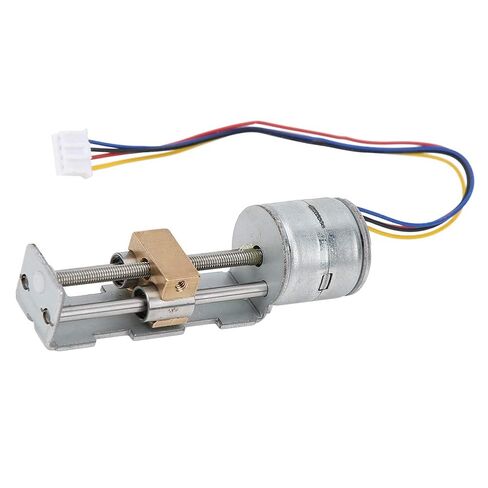

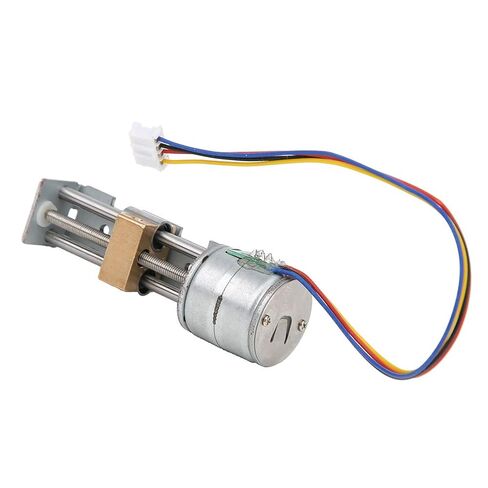

2. This product is miniature 2?phase 4?wire stepper motor with planetary reducer.
3. Planetary reducer adopts all metal structure, strong and , has a long service life.

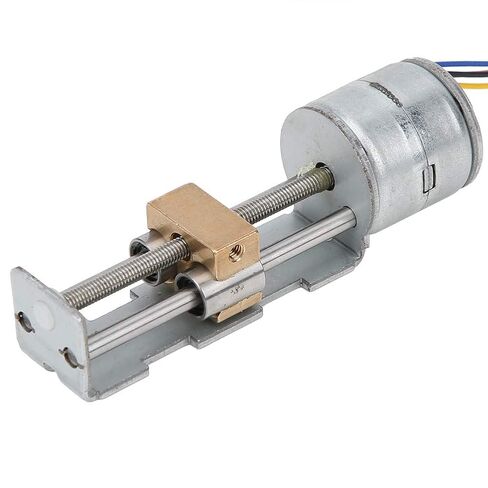

4. Drive accurate diagonal lines to move the metal slider up and down, and the bracket is basically made of metal structure.
5. The driving voltage of the motor is 5?9V/200?600mA, the higher the voltage, the greater the force and the greater the heat.

Specification:
Item Type: Stepper Motor
Motor Type: 2-phase 4-wire system
Drive Voltage: 5-9V/200-600mA (the higher the voltage, the greater the force, the greater the heat)
Screw Length: Approx. 45mm / 1.8in
Slider Stroke: Approx. 34mm / 1.3in
Motor Diameter: Approx. 20mm / 0.8in
Screw Diameter: Approx. 3mm / 0.1in
Screw Pitch: Approx. 0.5mm / 0.02in (moving 0.025mm in one step, subdivision drive can be used if smaller)
Step Angle: 18°
Phase : 21?

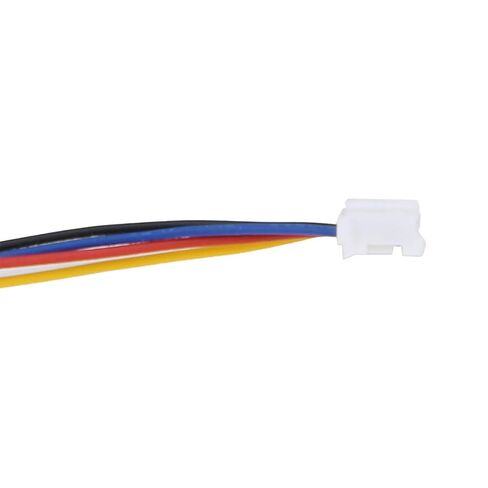

Blue A+Black B+Red B-Yellow A-

PackageList:
1 x Stepper Motor

Note:
Note that it is a stepper motor, it will not turn when directly connected to the power, and a stepper motor driver board and control board.
