5PCS USB 3.1 Type C Panel Mount Coupler 24 Pins Female to Female Zinc Alloy Housing Double Head Adapter D-Type Module USB C Pass Through Connector with Waterproof/Dust Cap

KWD 8
Brand
ANMBEST
Weight
100 g
– 1 +

Special Features

  • Usage: USB Type C 3.1 Female to Female panel mount connector with waterproof kit. Provides feed-through USB connectivity for data and charging in industrial environments.

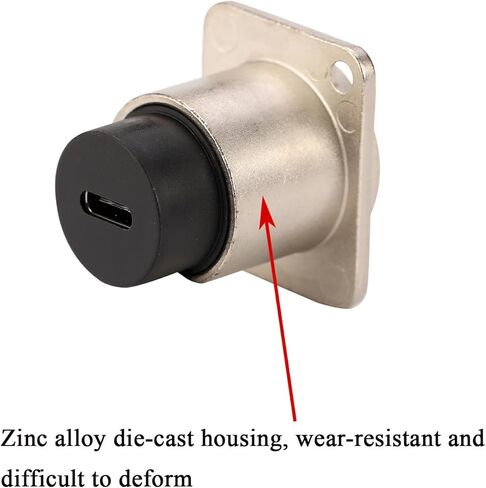

  • Durability: Zinc alloy die-cast housing, wear-resistant and difficult to deform. Adapt to a variety of harsh environments, acid, alkali, oxidation and so on.
  • Stable & High-speed Transmission: The copper needles uses brass solid terminals and the surface is gold-plated. Guarantee the stability of the current. Transmission speed up to 5Gbps and it supports charging to your devices with Type C input.
  • EASY INSTALLATION: No soldering, no installation tools, just plug the standard type-c head directly for quick installation.
  • THESE PORTS ARE ONLY ONE-SIDED! and so this means that even though they are USB-C, which means it should not matter which way the cord is plugged into them, they WILL NOT WORK if you do not have both cords on either side in the same orientation. So if you plug something into these and they do not work, unplug, rotate the plug and plug back in and they work.

Description

Experience seamless connectivity with our USB 3.1 Type C Panel Mount Coupler. The panel mount design allows you to securely affix the coupler to panels or surfaces for easy access. Compatible with a wide range of devices supporting USB Type C connections, this coupler is a versatile solution for your connectivity needs.

Specifications:
Number of cores: 24 PIN
Waterproof rating: IP65（with Waterproof/Dust Cap）
Connection type: TYPE-C
Flame retardant rating: UL94V-0
Connection method: plug type
Case wall thickness: Threaded type: >2mm, through-hole type: 0.3~7mm
Mounting Hole Size: 24mm
Thread size: 24*1.5
Connector transmission classification: USB3.1
Transmission speed range: 5Gbps
Electrical parameters:
Rated current: 5A
Rated voltage: 12V
Insulation resistance: ＞500MΩ
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
Contact resistance: ＜10mΩ
Material:
Shell: Zinc die casting, nickel plated
Socket contact pin: phosphor copper
Contact pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40～120Celsius
Storage temperature: -25～85Celsius
Atmospheric pressure: 86～106kPa
Relative humidity: ≤90% RH
Tips:
When the transmission speed is only 30Mbps, please insert the data cable in reverse, and the transmission speed will reach the expected 5Gbps.
Package Included:
5x Waterproof TYPE C Connector
5x Waterproof/Dust Cap Cover
