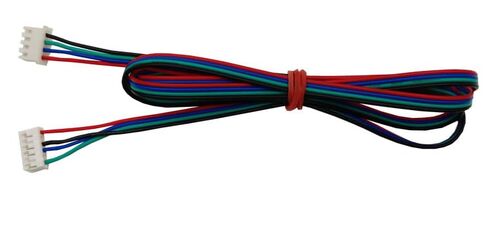

6 PCS 3D Printer Stepper Motor Cable XH2.54 4Pin to 6Pin Terminal Motor Wires, Ender 3 Stepper Motor Cables, 4 Pin to 6 Pin Stepper Motor Wire for 3D Printer Nema 17 Stepper Motor (1M)

KWD 3.500
Brand
Azuocn
Weight
5 g
Color1m
– 1 +

Special Features

  • 1M/3.28ft stepper motor cable. XH2.54 4Pin to 6Pin PH2.0, white terminal.
  • 6Pin terminal spacing at motor end: 2.0mm, 4pin terminal spacing to control terminal: 2.54mm.
  • Made of tinned copper wire and PVC insulation material, durable and durable.
  • The 4-pin XH2.54 connector on the drive side is compatible with the RAMPS board.
  • The 6-pin JST connector commonly used on the stepper motors found on 3D Printers on motor end.

Description

Parameter Information:
Number of Wires: 5
Outer Diameter: 1.3mm
Voltage Level: 300V
Wire Core Material: Tinned Copper Wire
Sheath Material: PVC
Sheath Color: Red Black Green Blue
Sheath Thickness: 0.8mm
Operating Temperature: -25 ~ +70 Degrees CelsiusPackage Include:
6 x Stepper Motor Cables
