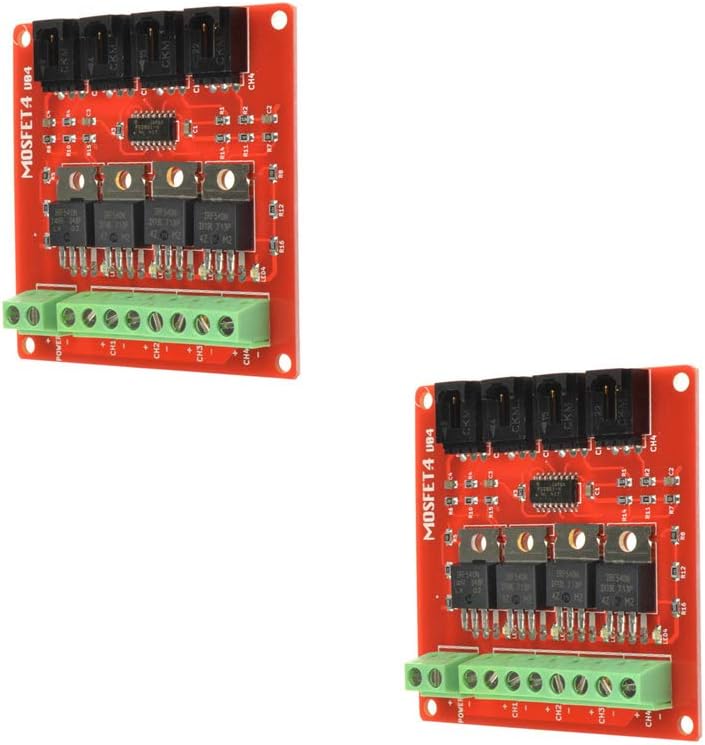

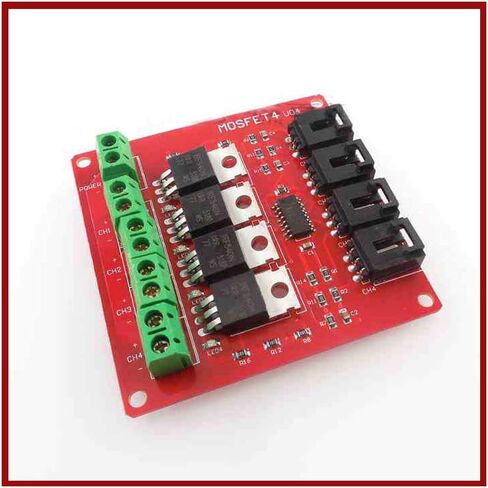

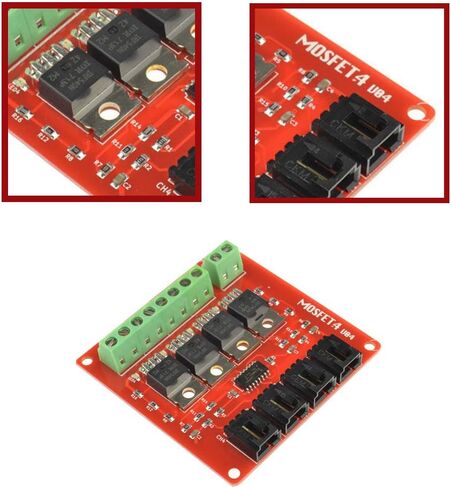

KOOBOOK 2Pcs Four Channel 4 Route MOSFET Button Module IRF540 V2.0+ MOSFET Switch Development Board for Arduino

KWD 6
Brand
KOOBOOK
Weight
91 g
Color2PCS
– 1 +

Special Features

  • Relay is kind of module with switching characteristics. Since relay works relying on mechanical contacts to open or shut. In this way it s will inevitably lead to relay's stopping working while switching time is too short. And papa sound made by relay in some situations is annoying.
  • MOSFET is another an electronic devices with good switching characteristics. It is widely used in circuits, such as power supplies switching ,motor drives, lighting dimmer and so on.
  • We designed a 4-channel MOSFET switch. It can supply up to four groups of electronic switches to control different circuit blocks respectively.
  • Limited by the working priciples, MOSFET can only be used to control the DC circuit, such as DC-LED screen and so on, but not suitable for AC circuit control.
  • In some extreme cases,It can be used to control 100V/33A DC circuit. However, it is suggested that the controlled DC voltage is more than 9V.

Description

In the circuit connection, the connection of the controlled end may be more complicated:
For example, to control the LED strip of 12V, first connect the power supply between the positive (+) and negative (-);
Next, the positive pole of the LED strip is connected to the positive (+) of the module, and the negative pole of the LED strip is connected to the switch 1 (S1);
If there are other LED strips to be controlled, just connect the positive pole of the LED strip to the positive (+) of the module, and the negative of the strip to the switch 2 (S2), switch 3 (S3), switch 4 (S4);
At the console, we only need to connect the wires through the sensors. By connecting the corresponding control port to the Arduino's sensor expansion board, these 12V LED strips can be controlled via the Arduino.

Note:
Manual measurement, with small error. Please check size in detail before purchase.
Real colors may slightly differ from the pictures, as it depends on specific monitor settings and light brightness.

We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.

Package Includes: 2Pcs
