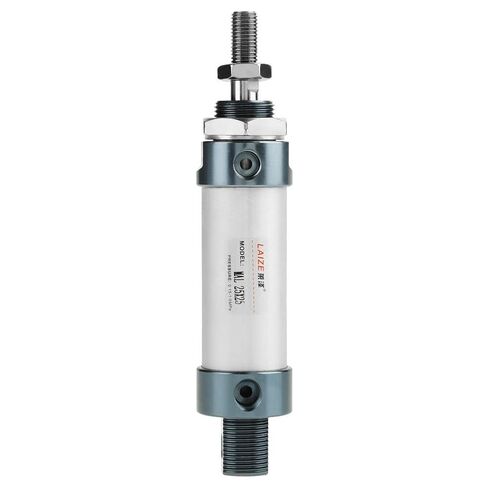

Hilitand Mini Pneumatic Air Cylinder 25mm Bore 25mm Stroke Single Rod Double Acting Cylinder

KWD 5.500
Brand
Hilitand
– 1 +

Special Features

  • self-lubrication : The front cover adopts self-lubrication bearing , lubrication and guiding performance. Pressure: 0.15 -1.0MPa (21-145psi) Enduring pressure: 1.5MPa(215Psi).
  • 25mm stroke: The stroke is 25mm / 0.98inch and the bore is 25mm / 0.98inch, convenient to install, easy to use. Hole diameter: G1/8. Length: Approx. 16.5cm / 6.49inch.

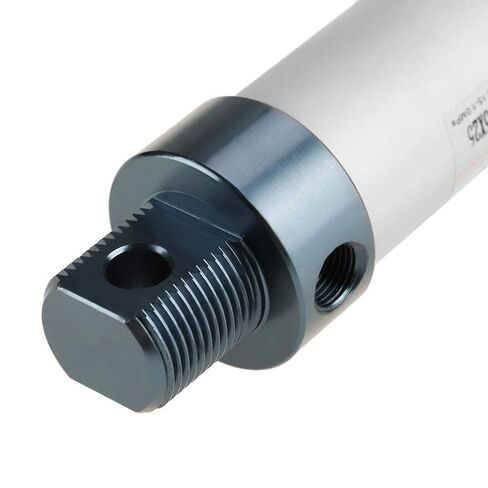

  • threaded cover: The front and rear cover is threaded with the cylinder pipe. Acting method: dual acting.
  • aluminum alloy: This air cylinder is made of high-grade aluminum alloy with long-lasting performance.
  • two-way sealing structure: The piston seal is adopted in two-way sealing structure with compact size and oil storage function. Working speed range: 50-800mm/s.

Description

Specification:
Material: Aluminum alloy
Operation medium: Air
Pressure: 0.15 -1.0MPa (21-145psi)
Enduring pressure: 1.5MPa(215Psi)
Working temperature: -20~70
Working speed range: 50-800mm/s
Acting method: dual acting
Hole diameter: G1/8
Bore: 25mm / 0.98inch
Stroke: 25mm / 0.98inch
Length: Approx. 16.5cm / 6.49inch
Weight: 244g

Package Included:
1 x Air Cylinder
