Baomain Compact Thin Air Cylinder SDA 80x30 80mm Bore 30mm Stroke PT3/8 Port

KWD 22.500
Brand
Baomain
Weight
1.2 kg
– 1 +

Special Features

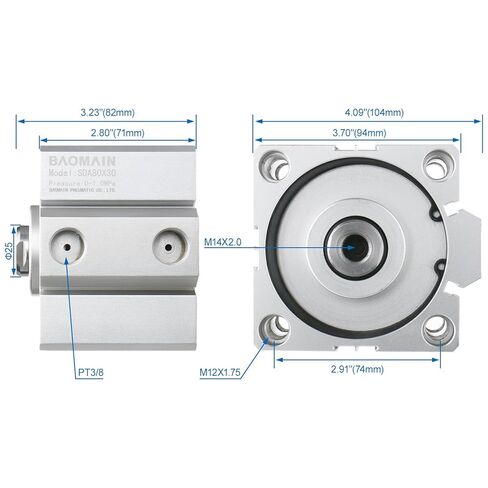

  • Bore: 80mm, Stroke: 30mm
  • Port size: PT3/8
  • Motion Type: Double Action; Max Working Pressure: 1.0Mpa
  • Piston Rod External Diameter: 25.2mm/ 1";
  • Mounting Thread Diameter: 10.7mm/ 0.42"

Description

The compact thin cylinder requiring small space for installation, easy maintance and disassembly.
It provide with push-in slot for installation of magnet switch, which can fix the magnet switch at any position.
The air cylinder, without need to lubrication, suitable for used in the places with small space for installation.
