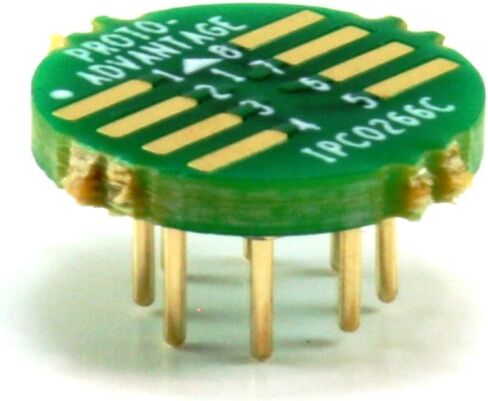

SOIC-8 (1.27 mm pitch, 150/200 mil body) to TO-8 (200 mil body width) surface mount adapter Compact Series. PCB dimensions: 400 mils x 400 mils x 62.5 mils (10.16 mm x 10.16 mm x 1.6 mm). PCB construction: FR-4 UL94V-0. PCB operating temperature range: -40C to +130C. PCB reflow maximum temperature: +260C. PCB Assembly standard: IPC-A-610 Class II. Compact Adapter Series Continuous Current Rating: 0.6A at 10C Temperature Rise, 1.1A at 40C Temperature Rise. Bottom side machine pins come pre-installed. They are gold plated (1um gold over 50um nickel) 0.46mm diameter, 3mm long. Pins are installed using surface mount with partial through hole technology for excellent strength and positional accuracy.
