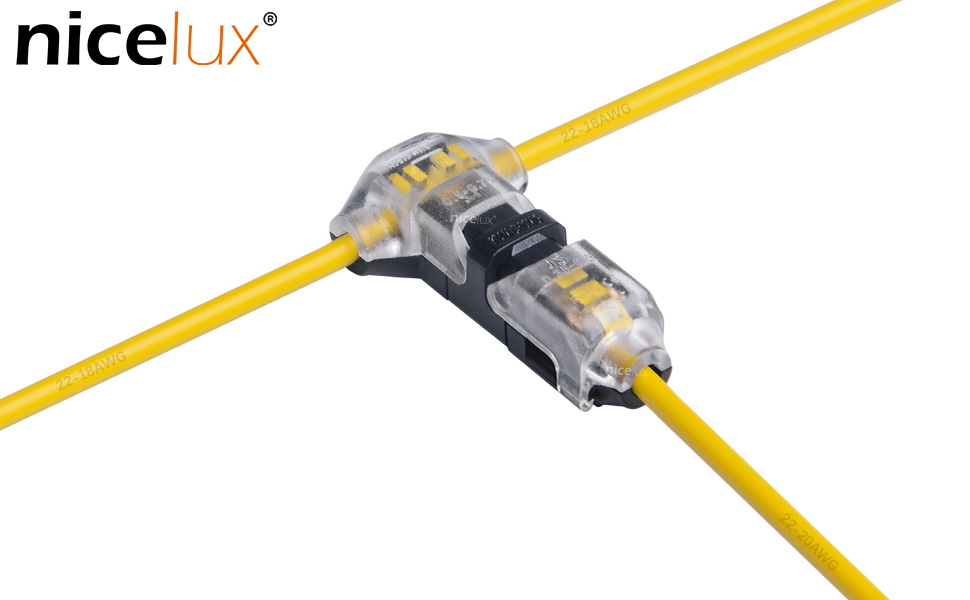

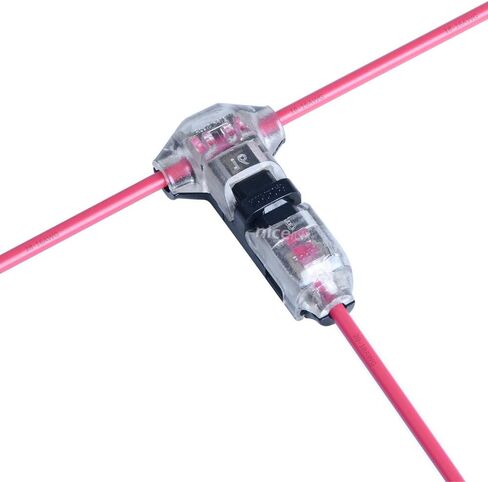

Wiring T Connector 1 Pin for 20,18 AWG and 16AWG Wire Splice,Tap Branches to Main Wire,Max DC/AC 300V 15A Conductor Capacity,High Precision Copper,Heavy Duty Housing,Clear,10PCS

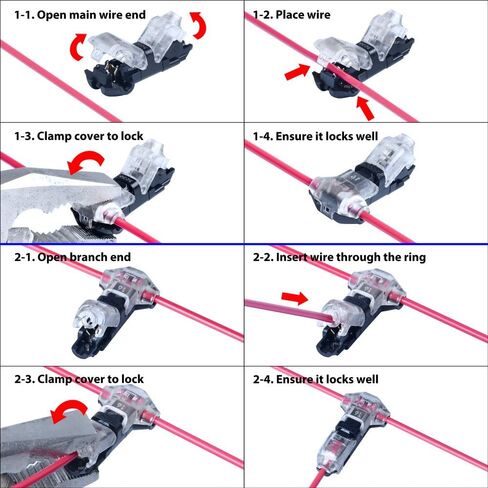

A high quality self stripping wire connector made for quick wire splicing between main wire and branches,where require high stability. User can simply INSERT wire and CLAMP cover to make connection within seconds,no need to strip, twist and tape the wire with help of IDC technology,and no electrical wiring skill is needed, it is so easy to learn and you can do it by a common clamp and scissors

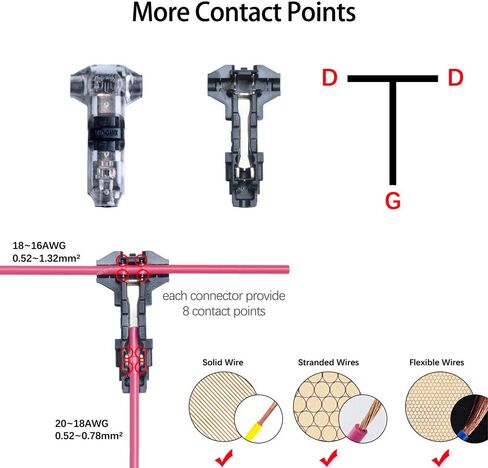

Unlike common T tap connectors that only have 4 contact points,to lower resistance and impedance,Nicelux T-1AC provide 8 optimized contact points to cable core，for more stable electron passing,in addition to high precision copper pin, it produce lower heat and ripple while carrying big current.The flame retardant housing add one more layer of protection in case over heat
Widely compatible with various wire type, such as solid wire,multiple stranded wire and flexible wire,the applicable wire jacket includes PVC,Teflon,Silicon and Rubber material. Main wire groove supports 18~16 AWG,Brach wire groove supports 20~18AWG
Max DC/AC 300V 15A(conductor capacity), mostly used in wiring project of home improvement,lighting,security camera,automotive electrics,appliance,equipment and wherever T tap connection is required
Pierce wire jacket in plastic housing to contact cable cores that are never exposed during operation,which is safe to user.Making wiring connection cleaner and more orgonized by avoiding hideous and time wasting electrical tape jobs, the wiring circuit is easier to understand for future system maintenance. The heavy duty housing makes connector lock cable firm and hard to open, but still be possible for reusable purpose
