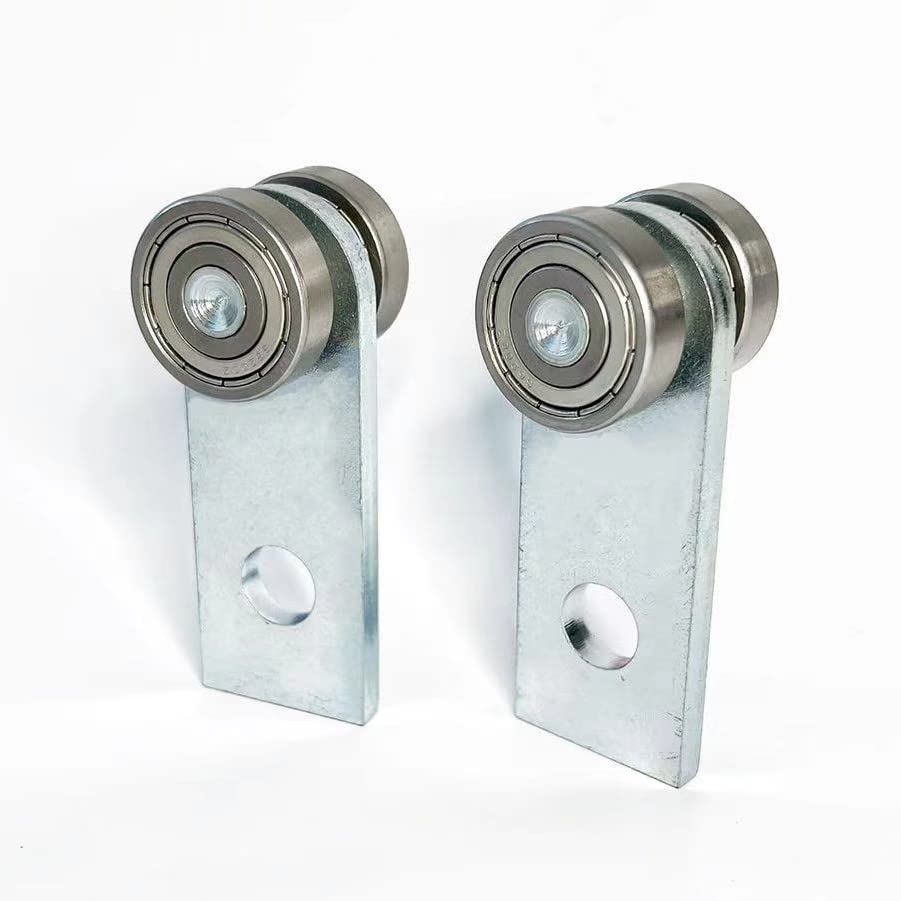

2 Sets 2 Wheel Trolley Assembly Rollers Two Bearing Trolley Assembly，Stable Welded Roller Trolley for 1-5/8" Wide and All 1-5/8" or Taller Strut Channel

KWD 9
Brand
Qaninan
Number of Items2
– 1 +

Special Features

  • ✔️【Heavy-Duty Build】Two Bearing Trolley Assembly Made with Hot-Rolled Carbon Steel of solid steel for impact resistance. Galvanized to ensure rust resistance of wheeled trolleys. Smooth and noiseless during use, bearings and pins are firmly welded, work stably, Resulting In Incredible Strength and Quality!
  • ✔️【Trolleys Size】Steel plate hole diameter-9/16”(14mm); thickness-1/4”(6mm).For use with 1-5/8" Wide and All 1-5/8" or Taller Strut Channel.
  • ✔️【Design load】150 lbs at 600 rpm; 220 lbs at 300 rpm; 280 lbs at 100 rpm. Break strength: 2200 lbs
  • ✔️【Versatility】You can use it to install ceiling trolley systems or electric lifts, or use it in your DIY projects, Can use upside down.
  • ✔️【Quality Service】If you have any issues with the trolley assembly 2 wheels then just let us know and we will solve it for you within 24 hours to ensure you are completely satisfied.

Description

Specification

Product Name: Two Bearing Trolley Assembly

Material: Steel

Finish: Zinc Plated Steel Trolleys

Size：Steel plate thickness1/4" (6mm)， Steel plate hole diameter: 9/16" (14mm)

Design load: 150 lbs at 600 rpm; 220 lbs at 300 rpm; 280 lbs at 100 rpm.

Break strength: 2200 lbs. Heavy Duty Industrial Strength. The Roller trolley is suitable for: all 1-5/8" or higher pillar channels. Anchor Shackle Size: 1 Pcs 1/2"(12mm) Bow Shape Screw Pin Anchor Shackle, one-way screw, bolt design, Max Open Width: 0.75" (20mm), Working Load Limit: 1400kg / 3086lbs. Trolley Wheel Weight:790g Advantage Roller Trolley Standard deep groove ball bearing installation is very smooth no noise to it when used. Bearings and pins are firmly welded, work stably, and can be used for a long time.
