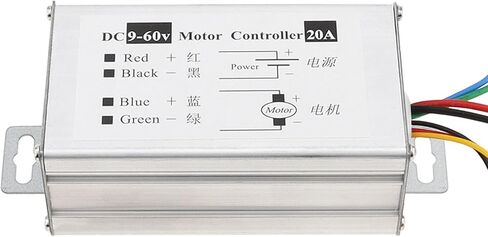

DC Motor Speed Controller, Brush Motor Driver Controls Module DC 9V-60V 20A 1200W Motor Pulse Width Modulator Regulator PWM Monitor Dimmer Motor Speed Controller with Switch, Knob

KWD 5
KWD 5.500
Brand
DiGiYes
Category
Electric Motors
Weight
125 g
– 1 +

Special Features

  • The motor speed controller has an input voltage range of 9-60V, the output current range is 0-20A, the continuous current is 18A, and the maximum power can reach 1200W.
  • The dc motor driver can be used to brush motor speed regulation, light dimming regulation in the DC circuit.

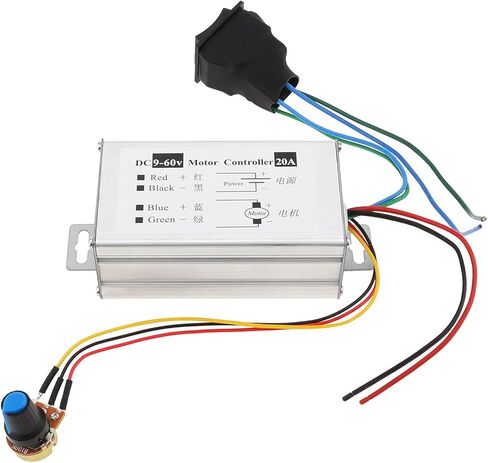

  • This motor control board can adjust the motor speed through a potentiometer and also supports clockwise / counterclockwise rotation adjustment.
  • Using pulse width modulation (PWM) method for dimming / speed regulation, with a speed range of 0-100 percent, high circuit efficiency, and the ability to fully utilize the electrical energy of the power supply.

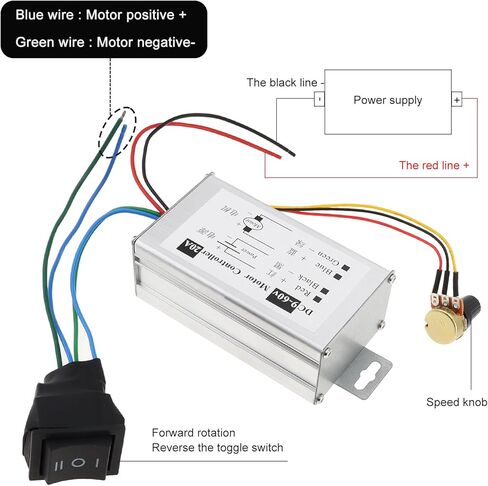

  • Easy wiring. Connect the red wire to the positive pole of the power supply, and the black wire to the negative pole of the power supply; The blue wire is connected to the positive pole of the motor, and the green wire is connected to the negative pole of the motor.

Description

Parameter Information:
Module Properties: Speed Controller
Input Voltage: DC 9V-60V
Output Current: 0-20A
Output Power: 1200W (Max) Product Description:
Product Name: 9V 12V 24V 36V 48V 60V PWM Brush Motor Driver Controls Module Place of Application:
- Used to brush motor speed regulation, light dimming regulation in the DC circuit. Note:
- The motor cannot be used in electric vehicles.
- Do not switch to the opposite direction at high speeds. Package Include:
1 x Motor Speed Controller
