EPLZON 5 PIN 80/60 AMP 12V DC SPDT Waterproof Relay with Harness Kit

⭕Suitable for LED work lights, fog lights, starters, wipers, fans, speakers, central locks, alarms, electric windows, etc.
Flame Retardant Material Shell：The shell is made of flame retardant and fire retardant material, which can work normally in high temperature environment.
Pure Copper Coil：The details are in place, the coil winding is sufficient, the withstand voltage purity is good, the mechanical life is long, the product is stable.
Silver Alloy Contact：Using silver alloy material, strong conductivity, high sensitivity, strong oxidation resistance hardness, can avoid deformation under high temperature working environment.

Specifications:
🔸Nominal Coil Voltage: 12 VDC
🔹Coil Power: 1.8W
🔸Coil Resistance: 80Ω
🔹Must Operate Voltage: 6~8 VDC
🔸Must Release Voltage: 0.6~3.6 VDC
🔹Maximum Applied Voltage: 15.6 VDC
🔸Contact Ratings: NO 80A 14VDC
🔹Contact Resistance: 100mMAX (at 6VDC 1A)
🔸Max Switching Current: 80A
🔹Max Switching Power: 840W
🔸Life Expectancy Electrical: 100,000 Operations (at30 Operations/minute)
🔹Life Expectancy Machanical: 10,000,000 Operations
🔸Temperature Range: -30℃ ~ +80℃
🔹Vibration Resistance: 10~55Hz, 1.5mm
🔸Shock Resistance: Operations Extremes: 10g. Damage Limits: 100g
🔹Hunidity: 40% ~ 85%
🔸Insulation Resistance: 100mΩ Min at500VDC
🔹Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec)
🔸Between Contactw and coil: 750AC (for one minute/sec)
🔹Operate Tice: 7ms
🔸Release Tice: 5ms

Package include:
2pcs * 5PIN 80/60 AMP Relay

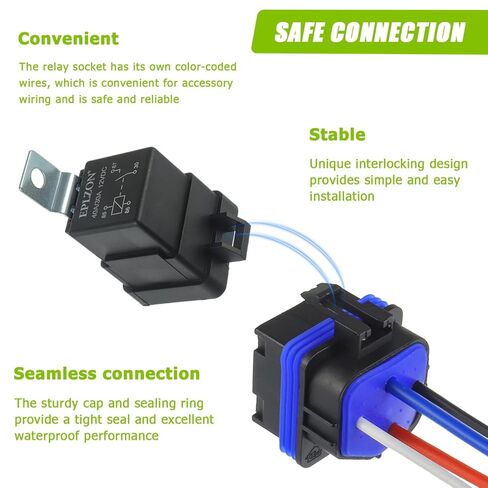

2pcs * 5PIN Wire Harness Socket
