Specification:
Body material: PA66
Sealing material: VITON
Spring material:SUS316L
Connection form: quick install
Type: 1/8, 3/16,1/4,5/16(Optional)
Structure: valve
Applicable medium: oil
Form: spring type
Pressure environment: normal pressure
direction: one-way
Driving mode: servo
Working temperature: high temperature
Spring valve opening pressure :1~2Kpa
Weight: Approx.4g~5g/0.1oz~0.2oz

Package list:

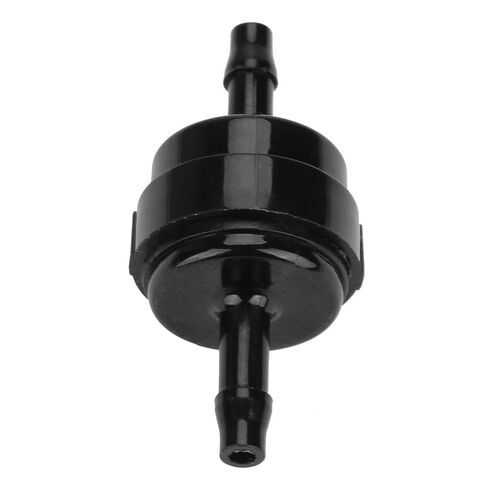

1 x Inline Check Valve

Body material:
Nylon 66 (PA66) : translucent opaque milk white crystalline polymer, malleable, melting point 252?. Brittle temperature 30?. The thermal decomposition temperature greater than 350?. Continuous heat 80-120?. It is resistant to , alkali, most inorganic salt aqueous solutions, halogenated , , esters, ketones and other , but soluble in , formic and other polar solvents. Excellent wear resistance, self - lubricating, high mechanical strength.
Sealing material:
Fluorinated rubber (VITON) : with high temperature resistance, oil and to a variety of chemical characteristics, fluorinated rubber has a high degree of chemical stability, is the elastomer in the medium of the best one. Fluorine rubber has excellent anti - aging and resistance. Fluorine rubber has a high solubility to gas, but a low diffusion speed, so it has a low air permeability
Spring material:
SUS316L stainless steel: SUS316L stainless steel is an resistant, resistant alloy material, it has high temperature resistance, easy to process, high strength and so on
