FYSETC Anycubi Mega-S Silicone Heater Pad - 3D Printer Upgrades Heating Plate: AC 110V 350W 218x218mm/8.6inch Heated Bed Mat with SSR for Fast Heating 220x220mm Aluminum Hotbed PEI Spring Steel

KWD 15
Brand
FYSETC
Weight
220 g
– 1 +

Special Features

  • 1. Upgraded DIY 3D Printer Parts for Anycubi Mega Pro: AC 110V 350W silicone heated pad for Mega S machine with 220mm/8.66" lattice glass platform print bed for much quicker heating. If need a heater pad for Anycubi-vyper model, please search Asin: at our store.

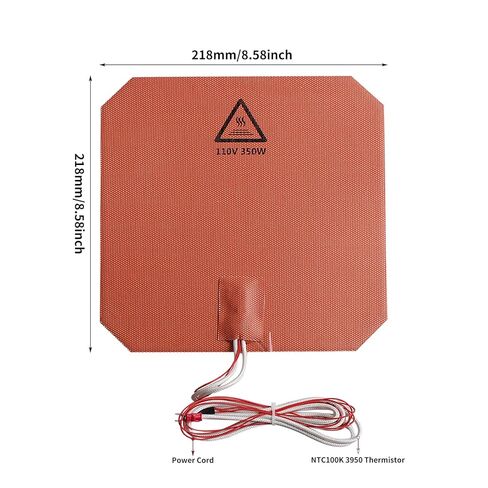

  • 2. Premium Heater Pad Size: 218mm x 218mm (Approx. 8.6" x 8.6"), thickness:1.5mm, fits for 220mm x 220mm printing bed to heat smooth textured steel spring sheet. TWO methods to install this high temperature resistant heat pad: 1) if used on the Stock lattice glass, you need to Clear OFF all wires on the back of glass bed to avoid short circuit. 2) Better to work with a new aluminum heating plate(Asin:B0D41272RB) at our store, then add the magentic flexible removable PEI build plate on.
  • 3. High Temperature Heated Bed: Our heating pad has a Voltage: AC 110V, Power: 350W. Red wires are the NTC 100K 3950 thermistor sensor extension wires to connect with the Controller board for temperature Control, White wires are for voltage supply to the heating element. Come with a quality Solid State Relay(SSR) and an Extra Fuse Wire(white) in the package, another 2 thin wires are signal leads(Red +, Black -) to connect with SSR Input ends and the Mainboard to control the heater mat work.
  • 4. Installation Attention: Simple and Easy Installation, some details needs your attention. One of 2 White wire cords of the Heater Pad is for connection either end of the SSR (marked 24-480VAC), another cord for the Naught Wire(N) on the power supply. The addition Fuse Wire(short and white) is to connect the SSR( add it onto the end marked 24-480VAC) and the Power Supply's Live Wire(L). That means, the SSR directly connects the heating pad cord and the Fuse wire, another end for R/B wires.

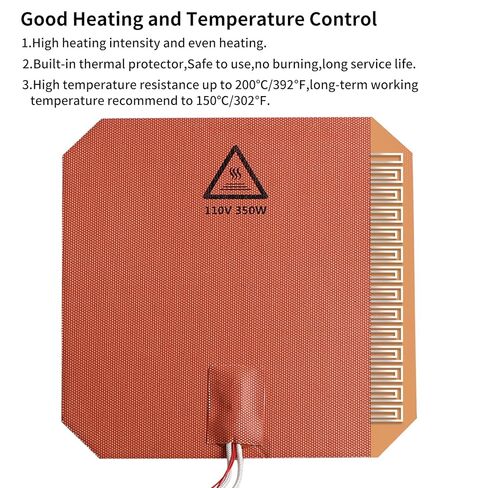

  • 5. Good Quality: Imported silicone rubber fiberglass cloth-Excellent performance, high temperature resistance of 200℃, long-term working temperature up to 150 ℃. Nickel alloy material resistance wire-Safe to use, high distribution density, even heat generation, durable, no short circuit. I6 AWG Silicone Wire -High purity anti-oxidation low resistance, strong conductivity, uniform thickness. Please Do not Cut the Silicone Heater Pad!!!

Description

FYSETC 3D Printer Silicone Heated Pad, Heating Plate 218x218mmx1.5mm, AC 110V 350W for Anycubi Mega Series 3D Printers 220x220mm(8.66“x8.66"）Print Bed Build Plate's heating.

Feature:
Imported raw materials, precision processing technology, full power is not false, better user experience, longer service life.
Package Includes:
1* 218mm x 218mm Silicone Heater Pad with white wire cords and thermistor wire
1* SSR(Solid State Relay)+ double-sided tape for fixing the SSR onto the aluminum extrusion profile
1* White Fuse Wire for connection SSR and Live Wire on the Power Supply
2* Signal wires, Red and Black, for connection SSR(±) with the mega's Control Board. Note:
Please Do not Cut the Silicone Heater Pad!!!
