Description:
100% Brand New and High Quality

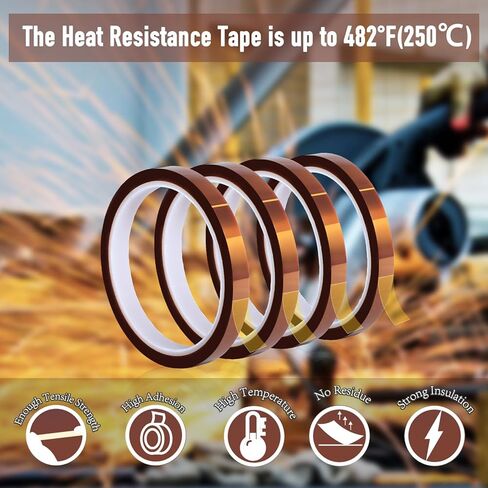

Gold finger tape is made of polyimide film coated with high-temperature resistant silicone. The color is brown (amber). Gold finger tape has good adhesiveness, good applicability, high temperature resistance, resistance, no tin penetration, no Residues, products with excellent electrical properties
High insulation, high temperature, low temperature, and alkali, low electrolysis, good mechanical properties, abrasion resistance, tear resistance;
Special adhesive , strong adhesion, off after the masking surface without leaving a residue.
Mainly used for painting, baking, sealing, footwear, packaging, construction and decoration industries;
Widely used as high-temperature insulation windings in , motors, coils, capacitors and variable frequency power supplies in the electronics industry;
Applicable to printed circuit board (PCB), SMT tin furnace, wave shield during protection process gold finger;
High-grade electrical insulation protection and lithium battery positive and negative fixed role;
Suitable for welding protection;
Lithium batteries for mobile phones are bundles.
Material: Polyimide
Color: Brown
Width: approx. 5/10/20/30/50mm （According to your purchase selection）
Length: approx. 33m
Weight: approx. 12.5g/25g/55g/85g/140g The corresponding size is: 5/10/20/30/50mm
Size:5/10/20/30/50mm （According to your purchase selection）
Thickness: 0.055mm
Elongation: 50%
Tensile force: ≥42N/25mm
Peeling force: ≥26N/25mm
Initial adhesion: 24#
Sticky force: 48H
Long-term temperature:200 °C degrees
Short-term temperature: 220 °C degrees.
Notice:
Please allow 1-2cm error due to manual measurement.
Pls make sure you do not mind before you bid.
The colors may have different as the difference display,pls understand.
If you have any problems, please contact us before open the dispute or give negative ,we will try our best to help you,thank you!
Quantity:
1x Roll of Tape Adhesive High Temperature Heat Resistant Polyimide（5/10/20/30/50mm According to your purchase selection）
