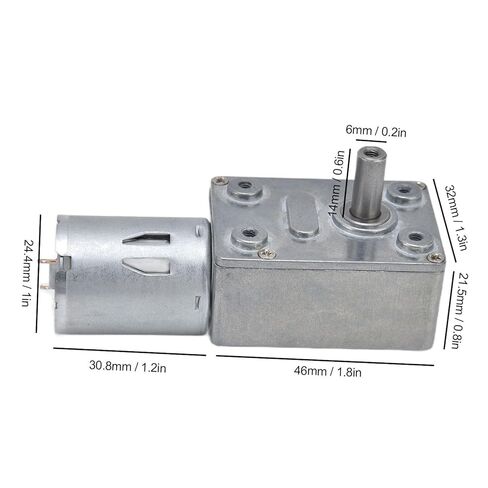

DC 12V Gear Motor, Worm Gear Motor CW CCW Speed Reduction Motor Micro Electric Motor Machinery Transmission Parts with Governor JGY370(150RPM)

KWD 9.500
Brand
Tissting
Category
Electric Motors
– 1 +

Special Features

  • 【Durable Material】The DC motor is made of zinc alloy die-casting alloy shell and stainless steel shaft and other metal materials, high temperature resistance, high abrasion resistance, strong bearing capacity, strong and durable, effective protection of the worm gear box motor body, prolonging the service life of the motor.
  • 【Low Power Consumption】The DC motor is made of high torque and high precision metal gears, which can be used to control the speed with the speed controller, the motor can be rotated forward and reverse, running smoothly with low noise, the maximum load capacity of the gears is about 30KG, and the speed can be controlled by the speed controller to improve the working efficiency.
  • 【Product Specifications】The set includes 1 x Motor, 1 x Governor, 1 x CW and CCW Switch, 1 x Knob Cap, 1 x Washer, 1 x Bracket, 4 x Mounting Screws. the voltage of the worm geared motor is DC 12V, and this JGY370 motor has a wide range of speeds to meet your needs. This JGY370 motor has a variety of speeds to meet your needs.
  • 【Widely Used】This motor has power-off and self-locking function, which is more practical and safer to use, suitable for electronic locks, range hoods, display racks, robots, smart devices, barbecue machines, nesting machines, entertainment equipment, etc.
  • 【Quality Service】 Your satisfaction is our greatest pursuit, we are committed to providing customers with a pleasant shopping experience and satisfactory after-sales service. If you have any questions, please contact us, and we will give you a satisfactory answer.

Description

Specification:
Item Type: Geared Motor
Working Voltage: DC12V
Use Range: DC6-18V
CCM2 DC Motor Governor Parameters:
DC motor regulator CW and CCW control
This governor uses PWM speed control technology, which has the characteristics of high conversion efficiency, wide speed range and stable performance. All of them use imported semiconductor original chips, and the circuits are stable and reliable after a number of tests such as voltage, current, and functions before leaving the factory.
Model: CCM2
Working Voltage: DC 10V-30V
Control Power: 12V x 3A=36W, 24V x 3A=72W, ＞24V, maximum 120W
Rated Current: 3A
Maximum Current: 5A
PWM Pulse Width Adjustment Range: 5%-95%
Potentiometer: Resistance value B10K, wire length is approx. 20cm / 7.9in, opening approx. 8mm / 0.3in
Output Voltage: About 0-100% of the input voltage
Speed Governor Size: Approx. 74 x 47 x 28mm / 2.9 x 1.9 x 1.1in
Potentiometer is used for speed regulation
CW and CCW switche is used to control forward, reverse, and stop

Package List:
1 x Motor
1 x Governor
1 x CW and CCW Switch
1 x Knob Cap
1 x Washer
1 x Bracket
4 x Mounting Screws
