GET NEW ONE IF NOT MAN MADE BROKEN IN 3 YEARS SINCE YOU PURCHASE THE SWITCH. This selector switch exquisite workmanship.
Product name: Brand New 22mm Metal Head 2 Position Selector Switch,country of manufacture: China
STRUCTURE:DPDT, 2NO 2NC (2 Normally Open + 2 Normally Close, Contact), Switch Rating: 10Amp 660V AC.Green rotating head with 24V DC LED light

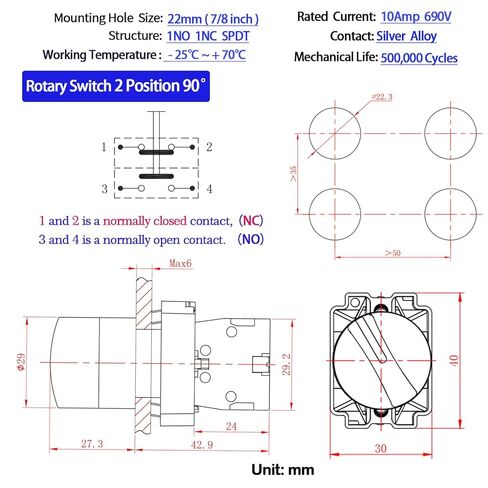

Mounting Size: 22mm 7/8inch, Operation Type: Maintained (Latching), Fit Panel Thickness(Adjustable) : Max 8.5mm / 0.3" ; total Size: 28.7 x 32.5 x 76 mm / 1. 1" x 1. 3" x 2. 9" (l*w*h).

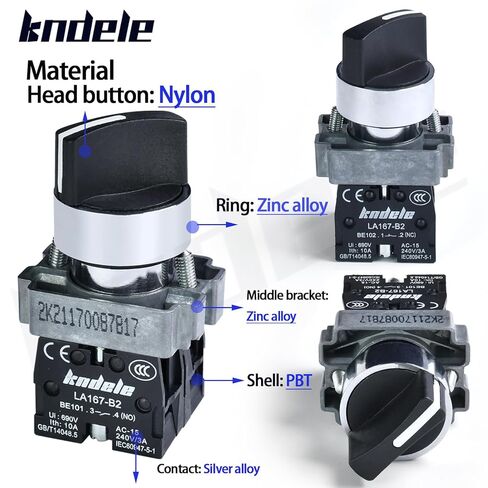

Material: Nylon Body, Alum Circuit, Silver Contact, Brass Conductor. Fix the back of the panel with screws.
Description
Special Note:
This selector switch, Must be fixed to use on the panel.
There are 2 screws fixed behind the panel.
22mm panel cutout diameter, self-locking action.
Used widely to control the electromagnetic starter, Contactor, relay and other automatic control electric circuits.
